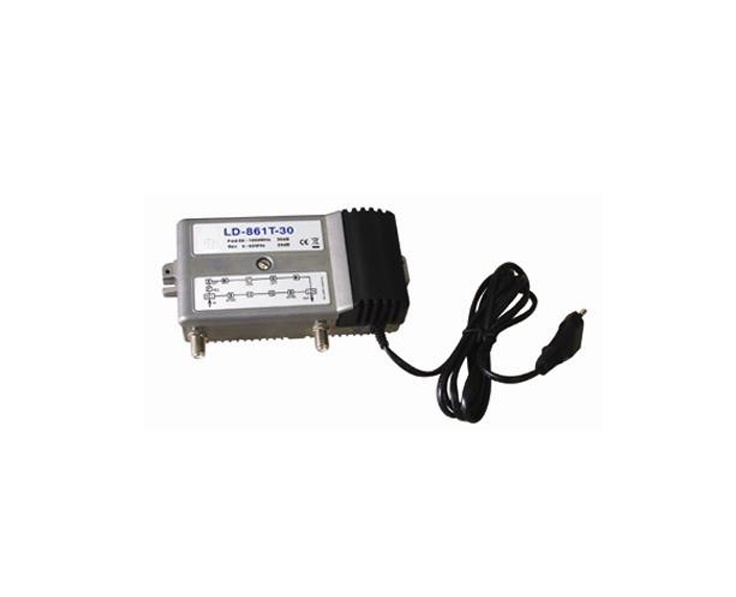

LD861T-30

Query


Features

u  Bandwidth range 5-1000MHz for CATV systems.

u  Advanced GaAs technique, low power consumption (4W)and high output level.

u  With interstage equalizer and interstage attenuator, which means can be adjusted by jumpers to improve the performance.

u  Change of the attenuation value in the IN-port to realize abetter equaliziation value.

u  Set jumper for active/passive reverse channel (with 20dB or 0dB optional).



Transmission bandwidth (MHz)

Bi-directional, 5 –1000 MHz

Forward gain 87-1000MHzdB

Return gain 5-65MHzdB

≥30

≥20

In-band flatness Forward(dB)

Return (dB)

± 0.75

± 0.75

Return loss (dB

Forward ≥ 16 (551-1000MHz≥ 14)

Return ≥ 14

Gain tuning range (dB)

1dB steps attenuation (optional)

Slope tuning range (dB)

1dB steps fixed equaliziation (optional)

Noise figure (dB)

6.5

Power supply

220V110V-250V

Channel load (PAL-D)

59CH (46 – 550MHz), for digital signals frequency range 551MHz – 1000MHz

Reference output level (dBμV)

Inside slope 6dB EQ

96dBμV (36dBmV)

94dBμV @543MHz

Distortion

CSOdB

64

CTBdB

75

Temperature range ()

-20-+88

Dimension (mm)

155X45X80 (W x H x D)

WeightKg

0.7

The output level on the 59 CH load PAL D/K of CTB/CSO is 96dBμV (36dBmV) @1000MHz when the slope is 6dB.
