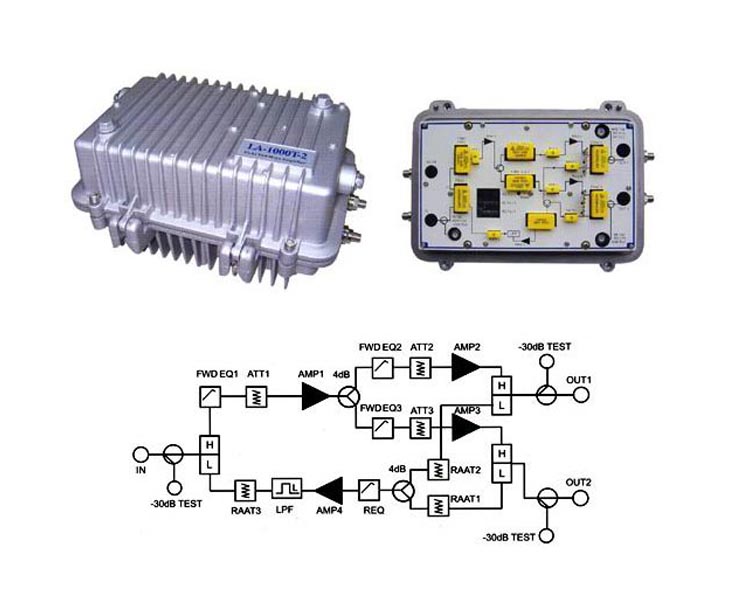

LA 1000T-2

Query


LA 1000T-2 is a 1GHz outdoor two way amplifier. Return path can be changed by different diplex filter; GaAs RF amplifier technology; high reliability; low distortion.

FEATURES

u  Unitized design(amplifier and power supply in a detachable module),two 108dBuv independent output port,every reverse path has its own built-in ATT.

u  1GHz frequency amplifier platform with SMT technology,high level output with advance technology 1GhzGaAs double power amplifier module,high linearity and fidelity.

u  High quality power supply.local and remote power feeding capability.

u  Particular outdoor housing,high performance at water resistance and electromagnetic shielding

u  New transistor surge arrester(resists thunder and surge voltade)

u  Diplex filter similar as SA and other big company,optional band splitting


Forward

Bandwidth

471000MHZ

Frequency Response

±0.75 dB

Return loss

≥16 dB

Max Gain

34 dB

NF

≤10 dB

Output level rang

108dBμV

Distortion (59 TV CHANNELS Loading&200MHz DIGITAL SIGHAL,

output Level of Amplifier is 105dBμV (flat) tilt is 6 dB)

CTB>68 dB

CSO>70 dB

HUM

>62dB

Test Point

-30dB

Reverse

Bandwidth

5200MHz

Duplex filter(Option)

30/45,40/45,65/88(MHz)

Frequency Response

±0.75dB

Gain

18dB

Return loss

≥16dB
