To support
DOCSIS 3.1/4.0 technology which enables a new generation of cable services and
helps operators continue to meet consumer demand for highspeed connections and

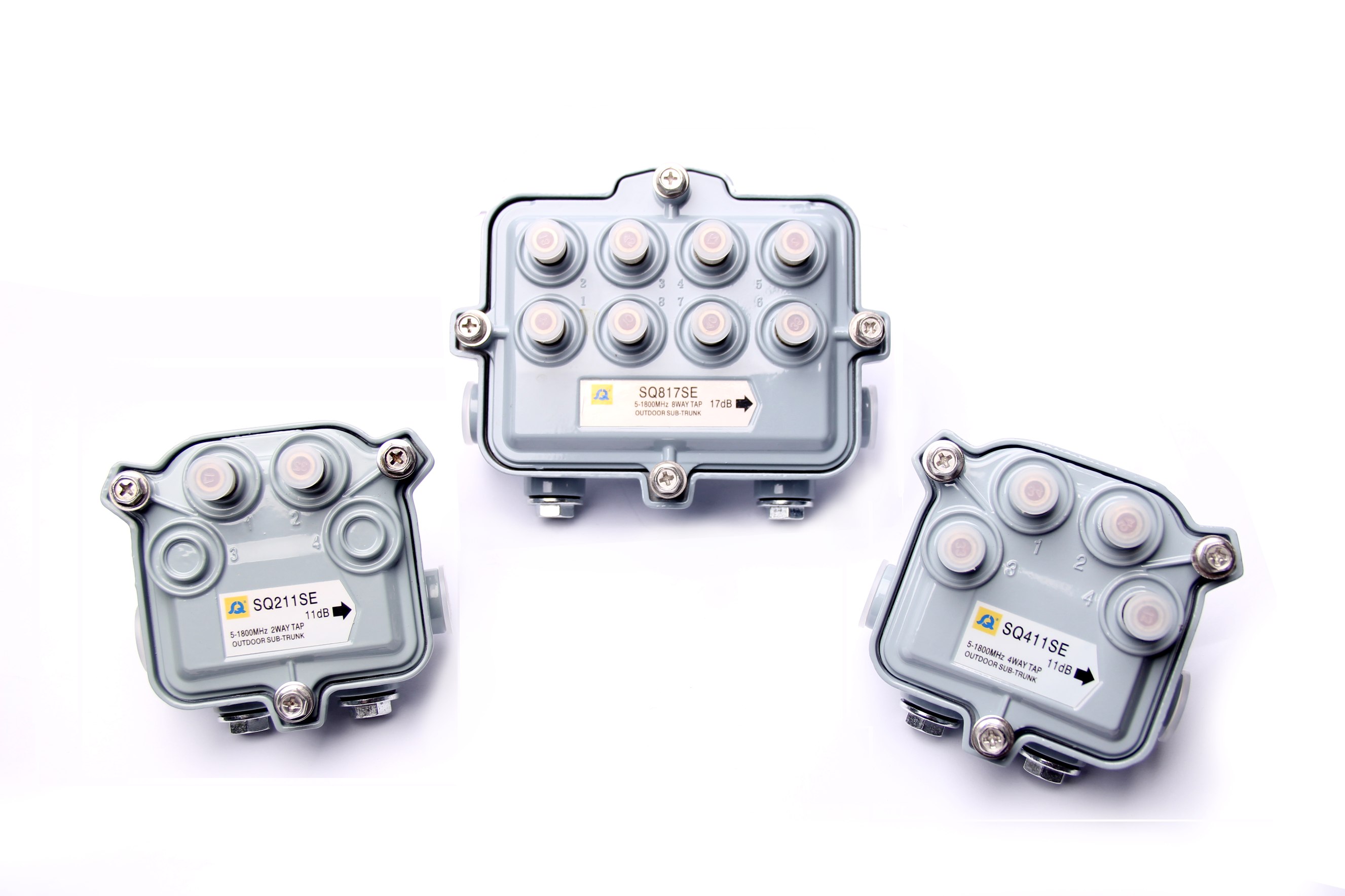

sophisticated applications, SQ has developed a series of high quality 1800 MHz
Outdoor Taps. The products are featured with outstanding performance and robust
reliability to help the operators complete the RF signal distribution in the field
and address different application requirements. Based on the rich experiences
and expertise on CATV industry, the SQ engineering team can also help to
customize the products very quickly in case there is any special requirement
required.
Features
l 1800 MHz bandwidth to
support Docsis 3.1/4.0 high speed connections and sophisticated applications.
l Optional
AC/RF bypass switch to keep the mainstream signal consistency when face plate
is removed during maintenance.
l Robust
thick housing and wire mesh gasket for very strong RFI shielding capability of
120dB.
l Heavy
duty power passing choke to support 15A of current passing capability.
l 6KV
Surge resistant capablity to protect the device.
Specifications
Table 1. Two-Way Taps
Electrical Performance
|
Item |
Range (MHz) |
4T |
8 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
Insertion Loss
|
5 – 10 |
NA |
3.5 |
1.8 |
1.3 |
1.2 |
1.0 |
0.9 |
0.9 |
0.9 |
|
10–65 |
NA |
3.6 |
1.7 |
1.3 |
1.2 |
1.1 |
1.0 |
1.0 |
1.0 |
|
|
65– 300 |
NA |
4.0 |
2.0 |
1.8 |
1.4 |
1.3 |
1.2 |
1.2 |
1.2 |
|
|
300 –550 |
NA |
4.7 |
2.6 |
2.0 |
1.9 |
1.6 |
1.5 |
1.5 |
1.5 |
|
|
550 – 750 |
NA |
4.9 |
3.0 |
2.5 |
2.2 |
1.9 |
1.8 |
1.8 |
1.8 |
|
|
750 –862 |
NA |
5.0 |
3.4 |
2.7 |
2.4 |
2.0 |
1.9 |
1.9 |
1.9 |
|
|
862–1000 |
NA |
5.1 |
3.5 |
3.0 |
2.5 |
2.1 |
2.0 |
2.0 |
2.0 |
|
|
1000–1218 |
NA |
5.2 |
3.6 |
3.2 |
2.6 |
2.2 |
2.1 |
2.1 |
2.1 |
|
|
1218–1500 |
NA |
5.3 |
3.5 |
3.5 |
2.8 |
2.3 |
2.2 |
2.2 |
2.2 |
|
|
1500-1700 |
NA |
5.4 |
4.0 |
3.6 |
3.0 |
2.4 |
2.3 |
2.3 |
2.3 |
|
|
1700-1800 |
NA |
5.5 |
4.2 |
3.8 |
3.2 |
2.6 |
2.4 |
2.4 |
2.4 |
|
|
Tap value(dB) Tolerance 5-862MHz±1.5dB,
862-1218MHz±2dB, 1218-1800MHz±2.5dB |
||||||||||
|
Tap Loss |
5 – 10 |
4 |
8 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
10-65 |
4 |
8 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
|
65--862 |
4 |
8 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
|
862-1218 |
4 |
9 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
|
1218-1500 |
4 |
9 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
|
1500-1700 |
4 |
9.5 |
12 |
14.5 |
17 |
20 |
23 |
26 |
29 |
|
|
1700-1800 |
5 |
10.0 |
12.5 |
15.0 |
17 |
20 |
23 |
26 |
29 |
|
|
Isolation Out-Tap |
5 – 10 |
NA |
20 |
20 |
24 |
26 |
27 |
29 |
30 |
32 |
|
10 –65 |
NA |
26 |
26 |
28 |
30 |
32 |
33 |
34 |
36 |
|
|
65– 550 |
NA |
26 |
24 |
26 |
28 |
30 |
32 |
33 |
34 |
|
|
550-1218 |
NA |
24 |
22 |
25 |
26 |
28 |
30 |
31 |
32 |
|
|
1218–1500 |
NA |
22 |
21 |
22 |
24 |
25 |
28 |
30 |
30 |
|
|
1500-1700 |
NA |
20 |
20 |
22 |
23 |
24 |
26 |
27 |
28 |
|
|
1700-1800 |
NA |
20 |
20 |
22 |
22 |
24 |
26 |
27 |
28 |
|
|
Isolation Tap-Tap |
5 – 10 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
10 –65 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
|
65–300 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
|
300– 550 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
|
551 –1218 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
1218–1500 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
1500-1700 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
|
|
1700-1800 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
|
|
Return Loss In/Out/Tap |
5 –10 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
10 -65 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
65– 862 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
862 –1218 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
1218–1500 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
|
1500–1700 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
|
1700–1800 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
Table 2. Four-Way Taps
Electrical Performance
|
Item |
Range (MHz) |
8T |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
Insertion Loss
|
5
– 10 |
NA |
3.5 |
1.8 |
1.3 |
1.2 |
1.0 |
0.9 |
0.9 |
|
10–65 |
NA |
3.6 |
1.9 |
1.4 |
1.3 |
1.1 |
1.0 |
1.0 |
|
|
65– 300 |
NA |
4.0 |
2.0 |
1.8 |
1.4 |
1.3 |
1.2 |
1.2 |
|
|
300 –550 |
NA |
4.7 |
2.6 |
2.0 |
1.9 |
1.6 |
1.5 |
1.5 |
|
|
550 – 750 |
NA |
4.9 |
3.0 |
2.5 |
2.2 |
1.9 |
1.8 |
1.8 |
|
|
750 –862 |
NA |
5.0 |
3.4 |
2.7 |
2.4 |
2.0 |
1.9 |
1.9 |
|
|
862–1000 |
NA |
5.1 |
3.5 |
3.0 |
2.6 |
2.1 |
2.0 |
2.0 |
|
|
1000–1218 |
NA |
5.2 |
3.6 |
3.2 |
2.7 |
2.3 |
2.2 |
2.2 |
|
|
1218–1500 |
NA |
5.3 |
4.0 |
3.5 |
2.8 |
2.5 |
2.4 |
2.4 |
|
|
1500-1700 |
NA |
5.4 |
4.8 |
3.8 |
3.0 |
2.6 |
2.7 |
2.7 |
|
|
1700-1800 |
NA |
5.5 |
5.0 |
4.0 |
3.2 |
2.8 |
2.8 |
2.8 |
|
|
Tap value(dB) Tolerance 5-862MHz±1.5dB, 862-1218MHz±2dB, 1218-1800MHz±2.5dB |
|||||||||
|
Tap Loss |
5 – 10 |
8 |
11 |
14.5 |
17 |
20 |
23 |
26 |
29 |
|
10-65 |
8 |
11 |
14.5 |
17 |
20 |
23 |
26 |
29 |
|
|
65--862 |
8 |
11 |
14.5 |
17 |
20 |
23 |
26 |
29 |
|
|
862-1218 |
8 |
11 |
14.5 |
17 |
20 |
23 |
26 |
29 |
|
|
1218-1500 |
8 |
12.5 |
15.0 |
17 |
20 |
23 |
26 |
29 |
|
|
1500-1700 |
8.5 |
13.0 |
15.5 |
17 |
20 |
23 |
26 |
29 |
|
|
1700-1800 |
9.0 |
13.5 |
16.0 |
18 |
21 |
24 |
27 |
30 |
|
|
Isolation Out-Tap |
5
– 10 |
NA |
20 |
24 |
26 |
27 |
29 |
32 |
|
|
10 –65 |
NA |
26 |
28 |
30 |
31 |
32 |
33 |
34 |
|
|
65– 550 |
NA |
25 |
26 |
28 |
30 |
32 |
32 |
33 |
|
|
550-1218 |
NA |
24 |
25 |
27 |
28 |
30 |
30 |
31 |
|
|
1218–1500 |
NA |
22 |
22 |
25 |
25 |
28 |
29 |
30 |
|
|
1500-1700 |
NA |
22 |
22 |
22 |
22 |
25 |
27 |
27 |
|
|
1700-1800 |
NA |
22 |
22 |
22 |
22 |
25 |
27 |
27 |
|
|
Isolation Tap-Tap |
5
– 10 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
10 –65 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
|
65-300 |
24 |
22 |
24 |
24 |
24 |
24 |
24 |
24 |
|
|
300– 550 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
|
551–1218 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
1218–1500 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
1500-1700 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
||
|
1700-1800 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
|
|
Return Loss In/Out/Tap |
5
–10 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
10 -65 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
65– 862 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
86 –1218 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
1218–1500 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
|
1500–1700 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
|
1700–1800 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
Table 3. Eight-Way Taps
Electrical Performance
|
Item |
Range (MHz) |
11T |
14 |
17 |
20 |
23 |
26 |
29 |
|
Insertion Loss
|
5
– 10 |
NA |
3.5 |
2.0 |
1.8 |
1.2 |
1.0 |
1.0 |
|
10–65 |
NA |
3.6 |
1.9 |
1.6 |
1.3 |
1.1 |
1.1 |
|
|
65– 300 |
NA |
4.5 |
2.2 |
1.8 |
1.4 |
1.3 |
1.3 |
|
|
300 –550 |
NA |
5.0 |
2.6 |
2.0 |
1.9 |
1.6 |
1.6 |
|
|
550 – 750 |
NA |
5.4 |
3.0 |
2.5 |
2.2 |
2.0 |
2.0 |
|
|
750 –862 |
NA |
5.5 |
3.4 |
2.7 |
2.4 |
2.2 |
2.2 |
|
|
862–1000 |
NA |
5.6 |
3.5 |
3.0 |
2.6 |
2.4 |
2.4 |
|
|
1000–1218 |
NA |
5.7 |
3.6 |
3.2 |
2.8 |
2.6 |
2.6 |
|
|
1218–1500 |
NA |
5.8 |
4.0 |
3.8 |
3.2 |
3.0 |
3.0 |
|
|
1500-1700 |
NA |
6.1 |
4.8 |
4.0 |
3.5 |
3.2 |
3.2 |
|
|
1700-1800 |
NA |
6.3 |
5.0 |
4.5 |
3.8 |
3.5 |
3.5 |
|
|
Tap value(dB) Tolerance 5-862MHz±1.5dB, 862-1218MHz±2dB, 1218-1800MHz±2.5dB |
||||||||
|
Tap Loss |
5 – 10 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
10-65 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
|
65--862 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
|
862-1218 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
|
|
1218-1500 |
11 |
15.0 |
18.0 |
20 |
23 |
26 |
29 |
|
|
1500-1700 |
11 |
15.5 |
18.5 |
20 |
23 |
26 |
29 |
|
|
1700-1800 |
12 |
16.5 |
19.0 |
21 |
24 |
27 |
30 |
|
|
Isolation Out-Tap |
5
– 10 |
NA |
20 |
24 |
26 |
28 |
30 |
32 |
|
10 –65 |
NA |
24 |
30 |
32 |
34 |
36 |
36 |
|
|
65– 550 |
NA |
28 |
28 |
30 |
32 |
34 |
34 |
|
|
550-1218 |
NA |
27 |
26 |
30 |
30 |
30 |
30 |
|
|
1218–1500 |
NA |
26 |
26 |
26 |
28 |
28 |
28 |
|
|
1500-1700 |
NA |
25 |
25 |
26 |
27 |
28 |
28 |
|
|
1700-1800 |
NA |
25 |
25 |
26 |
27 |
28 |
28 |
|
|
Isolation Tap-Tap |
5
– 10 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
10 –65 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
|
65-300 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
|
300– 550 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
|
551–1218 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
1218–1500 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
1500-1700 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
|
|
1700-1800 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
|
|
Return Loss In/Out/Tap |
5
–10 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
10 -65 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
65– 862 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
86 –1218 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
1218–1500 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
|
1500–1700 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
|
1700–1800 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
Table 4. General
Specifications
|
Item |
Units |
2
Way |
4
Way |
8
Way |
|
RF Impedance |
Ω |
75 |
||
|
Connector (In / Out) |
- |
5/8”~24 EF FEMALE |
||
|
Connector (Tap port) |
- |
3/8”~32UNEF~2A |
||
|
Waterproof Condition |
- |
15PSI |
||
|
Hum modulation |
dB |
~60 AVG |
||
|
Power passing |
A |
15 @ 60/90 VAC |
||
|
Power BUS |
- |
Uninterrupted |
||
|
Dimensions (W x H x D) |
mm |
97 x 92 x 75 |
97 x 92 x 75 |
144 x 118 x 79 |
|
Weight |
g |
245 |
257 |
395 |
|
Between 5 and 10 MHz,
the above specifications are typical values and not min. or max. values |
||||
Note: Unless otherwise noted, all specifications
reflect typical performance are referenced to 68°F (20°C).
5 and
10 MHz, the above specifications are typical values and not min. or max. values
Ordering information
|
Part Number |
Description |
|
9910180221 |
SQ204SE 1.8GHz Outdoor 2-Way Tap-4dB |
|
9910180222 |
SQ208SE 1.8GHz Outdoor 2-Way Tap-8dB |
|
9910180223 |
SQ211SE 1.8GHz Outdoor 2-Way Tap-11dB |
|
9910180224 |
SQ214SE 1.8GHz Outdoor 2-Way Tap-14dB |
|
9910180225 |
SQ217SE 1.8GHz Outdoor 2-Way Tap-17dB |
|
9910180226 |
SQ220SE 1.8GHz Outdoor 2-Way Tap-20dB |
|
9910180227 |
SQ223SE 1.8GHz Outdoor 2-Way Tap-23dB |
|
9910180228 |
SQ226SE 1.8GHz Outdoor 2-Way Tap-26dB |
|
9910180229 |
SQ229SE 1.8GHz Outdoor 2-Way Tap-29dB |
|
9910180241 |
SQ408SE 1.8GHz Outdoor 4-Way Tap-8dB |
|
9910180242 |
SQ411SE 1.8GHz Outdoor 4-Way Tap-11dB |
|
9910180243 |
SQ414SE 1.8GHz Outdoor 4-Way Tap-14dB |
|
9910180244 |
SQ417SE 1.8GHz Outdoor 4-Way Tap-17dB |
|
9910180245 |
SQ420SE 1.8GHz Outdoor 4-Way Tap-20dB |
|
9910180246 |
SQ423SE 1.8GHz Outdoor 4-Way Tap-23dB |
|
9910180247 |
SQ426SE 1.8GHz Outdoor 4-Way Tap-26dB |
|
9910180248 |
SQ429SE 1.8GHz Outdoor 4-Way Tap-29dB |
|
9910180261 |
SQ811SE 1.8GHz Outdoor 8-Way Tap-11dB |
|
9910180262 |
SQ814SE 1.8GHz Outdoor 8-Way Tap-14dB |
|
9910180263 |
SQ817SE 1.8GHz Outdoor 8-Way Tap-17dB |
|
9910180264 |
SQ820SE 1.8GHz Outdoor 8-Way Tap-20dB |
|
9910180265 |
SQ823SE 1.8GHz Outdoor 8-Way Tap-23dB |
|
9910180266 |
SQ826SE 1.8GHz Outdoor 8-Way Tap-26dB |
|
9910180267 |
SQ829SE 1.8GHz Outdoor 8-Way Tap-29dB |
沪公网安备 31010402005238号
