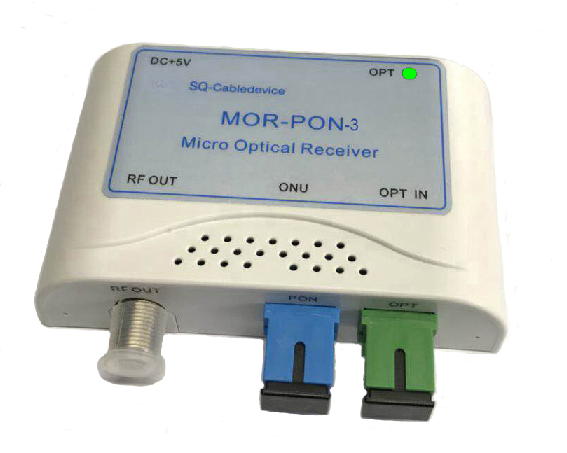

MOR-PON-3 Micro Optical Receiver

Query


MOR-PON-3 Micro Optical Receiver, built-in CWDM, suitable for single-fiber three-wavelength system, CATV working wavelength is 1550nm, through wavelength is 1310 / 1490nm. It can easily working with ONU of EPON, GPON. This product has a small plastic housing, compact and reasonable internal circuit structure and excellent performance. It is a best choice in residential area and FTTH network.

Features

l  Supports 1 GHz RF pass band

l  AGC built-in with -12 to -2 dBm optical input range

l  -15 dBm low optical input power

l  LED indicator for optical input power with 3 status

l  1310,1490nm loop-through for PON application

l  Using low-noise MMIC amplifier circuit, to ensure excellent distortion specification and high MER value at low optical input power

l  Low power consumption

l  Lovely plastic small housing

l  Installation easily

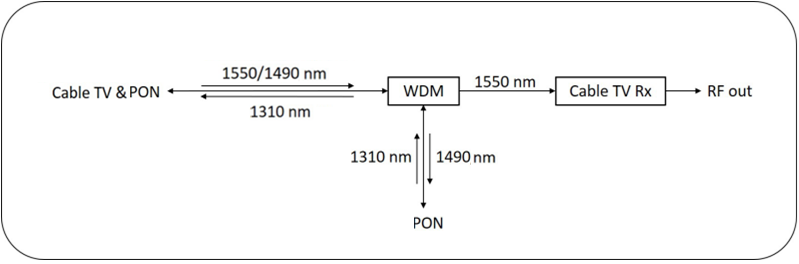

Block Diagram






Specifications

Table 1. Forward Section Specifications

Item

Units

Value

Optical Section

Wavelength for Cable TV

nm

1550

Wavelength for Through

nm

1310, 1490

Optical Input Power Range for CATV

dBm

-15 +1

Optical AGC Range

dBm

-12 -2

Optical Return Loss

dB

45

Optical Connector

-

SC / APC @ Input port

SC / UPC @ Loop-through port

Optical Power Indicator (LED)

-

- Red :  Pin < - 12 dBm

- Green:   - 12 ≤ Pin < -2 dBm

- Red Flashes:   Pin ≥ -2 dBm

RF Section





RF Pass Band

MHz

45 1003

RF Flatness

dB

± 1.0

RF Output Level

dBmV

18 @ -12 dBm optical input power

RF Return Loss

dB

16

RF Impedance

75

RF Connector

-

F - female, Imperial



Link Section





Distortion@ 59 PAL D/K*

CNR

CTB

CSO

MER



BER



dB

dB

dB

dB

dB

dB



43

65

63

34 @-12dBm optical input power,

Or 30 @-15dBm optical input power

1.0E-9

Notes: * Distortion performance reference output level is 18 dBmV (- 12 dBm optical input power, 3.5% OMI).



Table 2. General Specifications

Item

Units

Value

DC Power Port

-

5.5 ( - ) x 2.1 ( + )  (diameter, mm)

Power Supply Voltage

V DC

5 VDC, 260mA

Power Consumption

W

< 2

Dimensions (W x H x D)

mm

94.5 x 23 x 78

Weight

kg

0.1 (without External power adapter)

0.1 (External power adapter only)

Operating Temperature

°C

0 + 40

Storage Temperature

°C

- 20 + 70

Relative Humidity

%

5 90 (non-condensing)

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C).



Ordering information

Description

Part Number

MOR-PON-3 Micro Optical Receiver, no external power adapter

9934000008

MOR-PON-3 Micro Optical Receiver, 110VAC power adapter, American power cord

9934000009

MOR-PON-3 Micro Optical Receiver, 220VAC power adapter, Chinese power cord

9934000010

MOR-PON-3 Micro Optical Receiver, 220VAC power adapter, European power cord

9934000011
