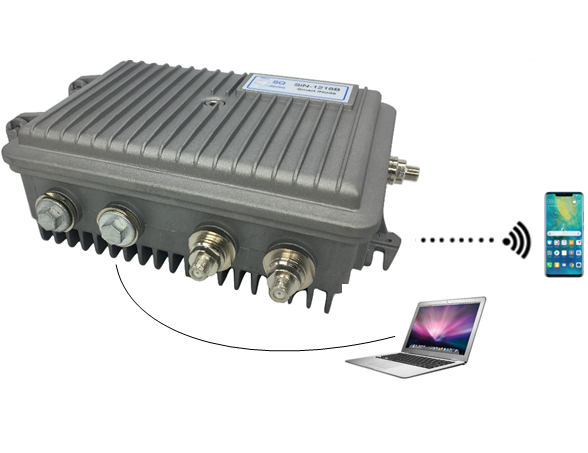

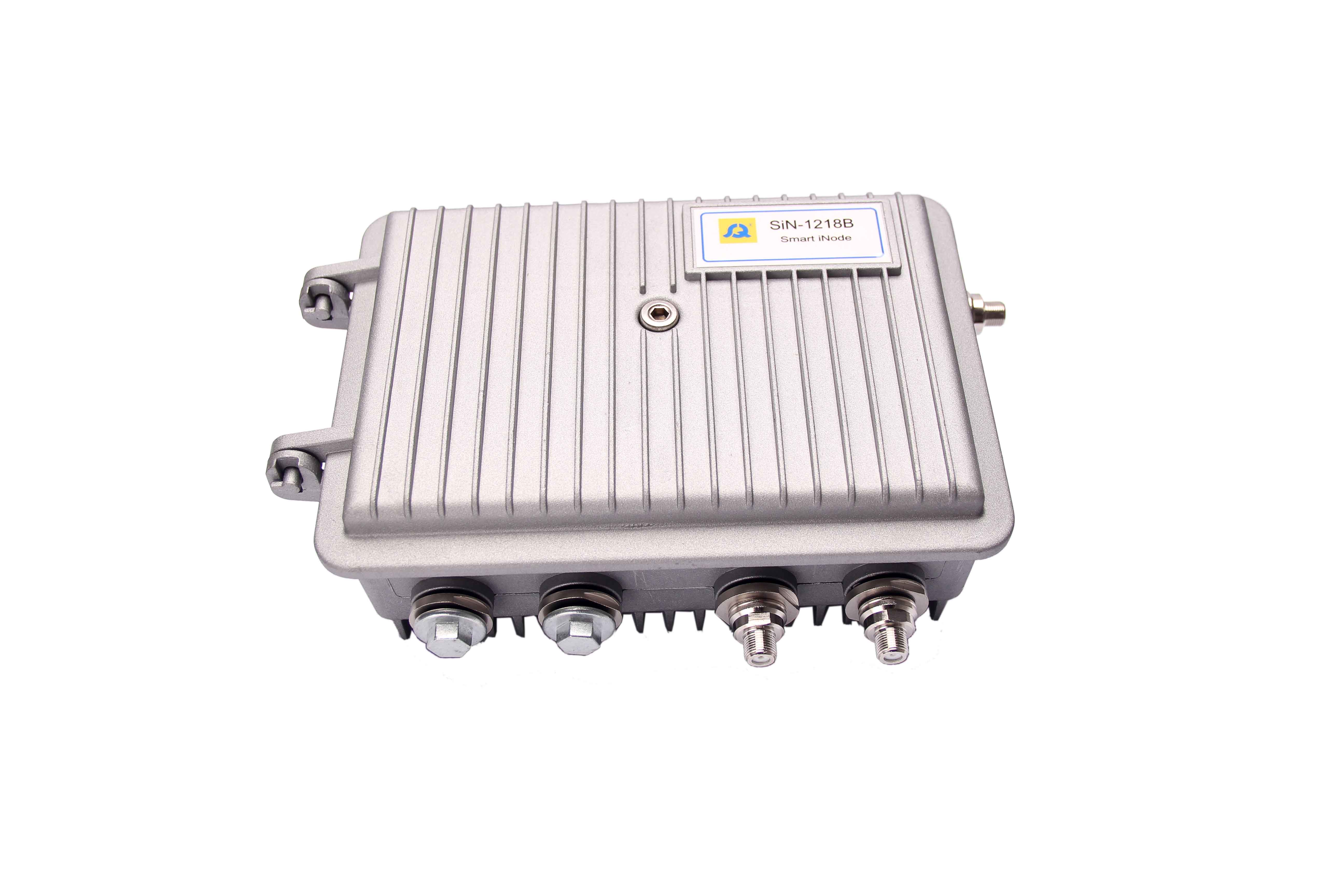

The SiN-1218B Smart iNode is designed to serve as an intelligent node within today’s HFC networks. It can be adjusted via Local Control Software (LCS) a computer or APP. The device's USB port communicates directly to the Smart iNode controller. The no-touch Smart iNode delivers an innovative approach that enables significant operational savings for operators through automation. No manual configuration is necessary.
Features
l Supports 1.2 GHz downstream
l 48dBmV high RF output level @ 1.2 GHz
l AGC optical input range of - 8 to + 2 dBm
l No needed of installing and maintaining any external accessories such as pads and EQs
l Local monitoring, control and set up via Local Control Software(LCS) or APP
l Switch & attenuator for reverse path gain adjust and turn-off for diagnose and control
l DC voltage monitor capable
l Second output can be selected via splitter
Specifications
Table 1. Forward Section Specifications
Item | Units | Value |
Optical Section | ||
Wavelength | nm | 1310 and 1550 |
Optical Input Power Range | dBm | - 8 - + 2 |
Optical AGC Range | dBm | - 8 - + 2 |
RF output level at 0 dBm optical input @ 3.25 % OMI | dBmV | 281 |
Optical Return Loss | dB | 45 |
Optical Connector | - | SC / APC |
RF Section |
|
|
Frequency Range | MHz | 54/85/105/258 - 1218 |
Frequency Response | dB | ± 0.75 |
Operational Gain | dB | 36 (@ 1218MHz) |
RF Tilt (linear) | dB | 0 - 22, 1 dB step |
RF Level control | dB | 0 - 20, 1 dB step |
RF Output Level | dBmV | 48@ 1218 MHz, 1 output |
Return Loss | dB | 16 |
Noise Figure | dB | 3 |
RF Test Point | dB | 20 ± 0.75 |
Distortion Section5,6,7,8 |
|
|
C/N | dB | 51 |
Distortion CTB CSO XMOD |
dBc
|
63 62 59 |
Note:
1. Minimum receiver RF output level for the stated transmitter percent OMI per channel, with receiver optical input power of 0 dBm. To determine RF output levels at other optical input power levels, add (or subtract) 2 dB in RF level for each 1 dB increase (or decrease) in receiver optical input power.
2. Reference output tilt and internal tilt are both “Linear” tilt.
3. Forward internal tilt specified is primarily due to interstage equalizer and output equalizer on board.
4. The forward reference output tilt specified is the internal tilt of the launch amplifier and the tilt associated with the optical link.
5. The tilt is defined as the difference between the gain at the start frequency and the gain at the stop frequency 22dB tilt.
6. VO=48dBmV at 1218MHz, 22dB tilt, 79 analog channels plus 111 digital channels.
7. 79 analog channels, NTSC frequency raster: 55.25MHz to 547.25MHZ, +36dBmV to 45.4dBmV tilted output level, plus 111digital channels, -6dB offset relative to the equivalent analog carrier.
8. Composite Second Order (CSO) – the CSO parameter (both sum and difference products) is defined by ANSI/SCTE6. Composite Triple Beat (selective voltmeter method), referenced to 100% modulation of the carrier being tested. Carrier to intermodulation Noise (CIN) – The CIN parameter is defined by ANSI/SCTE17.
Table 2. Reverse Section Specifications
Item | Units | Value | |
Optical Section | |||
Laser Type | - | DFB | |
Wavelength | nm | 1310, 1550, CWDM, DWDM | |
Output Power | dBm | 0, 3 | |
Optical Return Loss | dB | 45 | |
Optical Connector | - | SC / APC | |
RF Section | |||
RF Input Level | dBmV | 0 - 10 | |
Frequency Range | MHz | 5 - 85 | |
Frequency Response | dB | ± 0.50 | |
Internal Tilt (linear) | dB | ± 0.50 | |
Return Loss | dB | 16 | |
NPR Dynamic Range | dB | 20 @ 30 dB NPR | |
Launch Amplifier Section |
|
| |
Frequency Range | MHz | 5 - 85 | |
Operational Gain | dB | 161 | |
Frequency Response | dB | ± 0.50 | |
Internal Tilt (linear) | dB | ± 0.50 | |
Return Loss | dB | 16 | |
Noise Figure | dB | 6.5 | |
RF Switch Loss | dB | 60 | |
RF Test point | dB | 20 ± 0.75 | |
Notes:1. Reverse operational gain is measured from the reverse RF input port to the reverse transmitter and includes optical interface board gain.
Table 3. General Specifications
Item | Units | Value |
Supply Voltage | VAC | 30-90 |
Power Consumption | W | 22 |
RF Connectors | - | F - female, Imperial |
RF Impedance | Ω | 75 |
Operating Temperature | ˚C | - 40 - + 60 |
Humidity | % | 5 - 95 %，non-condensing |
- | IP 65 | |
Dimensions (W x H x D) | mm | 230 x 164 x 84 |
Weight | kg | 1.7 |
Note:Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
Ordering information
Description | Part Number |
SiN-1218B Smart iNode, 1.2GHz, 85/105, SC/APC, 1310nm RTx, DFB 0dBm, 60V | 9930000400 |
