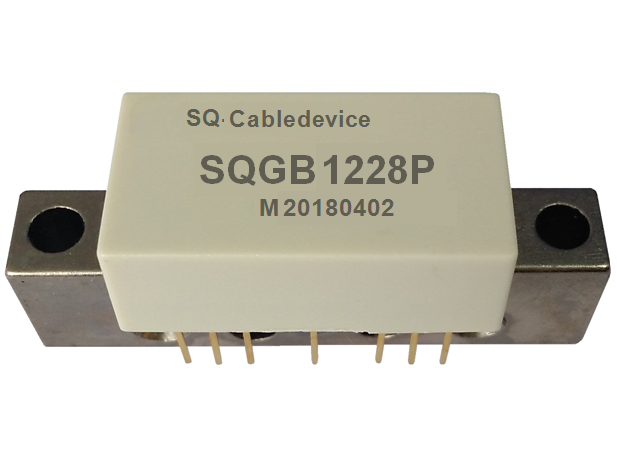

1.2G PP SQGB1228/30/32P 1.2GHz GaAs Push Pull Gain Block

Query


The SQGB1228/30/32P is a Hybrid Push Pull gain block. It is optimized for exceptionally low distortion and low noise figure in a 75 Ω push pull amplifier circuit. It provides excellent input and output return loss over the 45 to 1200 MHz CATV HFC infrastructure.

The device is ideally suited for use in CATV applications where low distortion and low noise figure are required.

The device package is complied with standard SOT-115J.


Features

28/30/32 dB Gain

24 V DC Bias

44 dBmV/CH Output Power Level @ 1200 MHz

Excellent Linearity

Superior Return Loss Performance

Extremely Low Distortion

Optimal Reliability

Extremely Low Noise

Unconditionally Stable Under All Terminations

380 mA Max. at 24 VDC



Applications

45 to 1200 MHz CATV Amplifier Systems


Electrical Specifications:  T = +25 °C, V = 24 V, Zin = Zout = 75 Ω

Parameter

Units

Min.

Typ.

Max.

Test Conditions


Gain


dB

-

28

-

45 - 1200 MHz

30

32

Slope

dB

-

1.0

-

45 - 1200 MHz

Flatness

dB

-

0.75

-

45 - 1200 MHz

Noise Figure

dB

-

6.0

-

45 - 1200 MHz

Reverse Isolation

dB

-

48

-

-

Input Return Loss

dB

-

16

-

45 - 1200 MHz

Output Return Loss

dB

-

16

-

45 - 1200 MHz

Total Current Consumption (DC)

mA

-

350

380

+ 24 V

CTB*

dB

-

70

-

44 dBmV @ 1200 MHz

CSO*

dB

-

68

-

44 dBmV @ 1200 MHz

XMOD*

dB

-

68

-

44 dBmV @ 1200 MHz

* 112 NTSC channels, flat.



Handling Procedures

Please observe the following precautions to avoid damage:



Static Sensitivity

Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper ESD control techniques should be used when handling these devices.



Absolute Maximum Ratings

Parameter

Unit

Rating

RF Input Level

dBmV

75

DC Supply Over-Voltag(5 minutes)

V

30

Storage Temperature

°C

- 40 to +100

Operating Mounting Base Temperature

°C

- 30 to +85

 Caution! ESD sensitive device.                                         RoHS

Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.

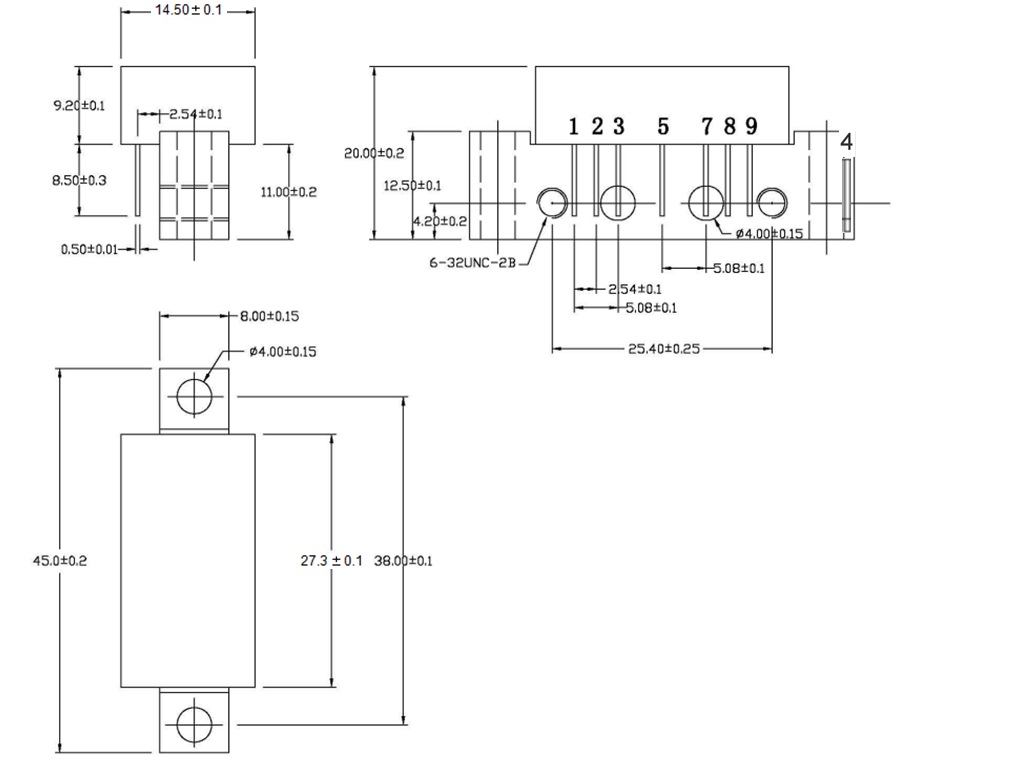

Package Drawing (Dimensions in millimeters)



Ordering information

Description

Part Number

SQGB1228P GaAs Push Pull Gain Block 1.2GHz 28dB

9940000027

SQGB1230P GaAs Push Pull Gain Block 1.2GHz 30dB

9940000028

SQGB1232P GaAs Push Pull Gain Block 1.2GHz 32dB

9940000029
