SiN-1218A Smart iNode

Query

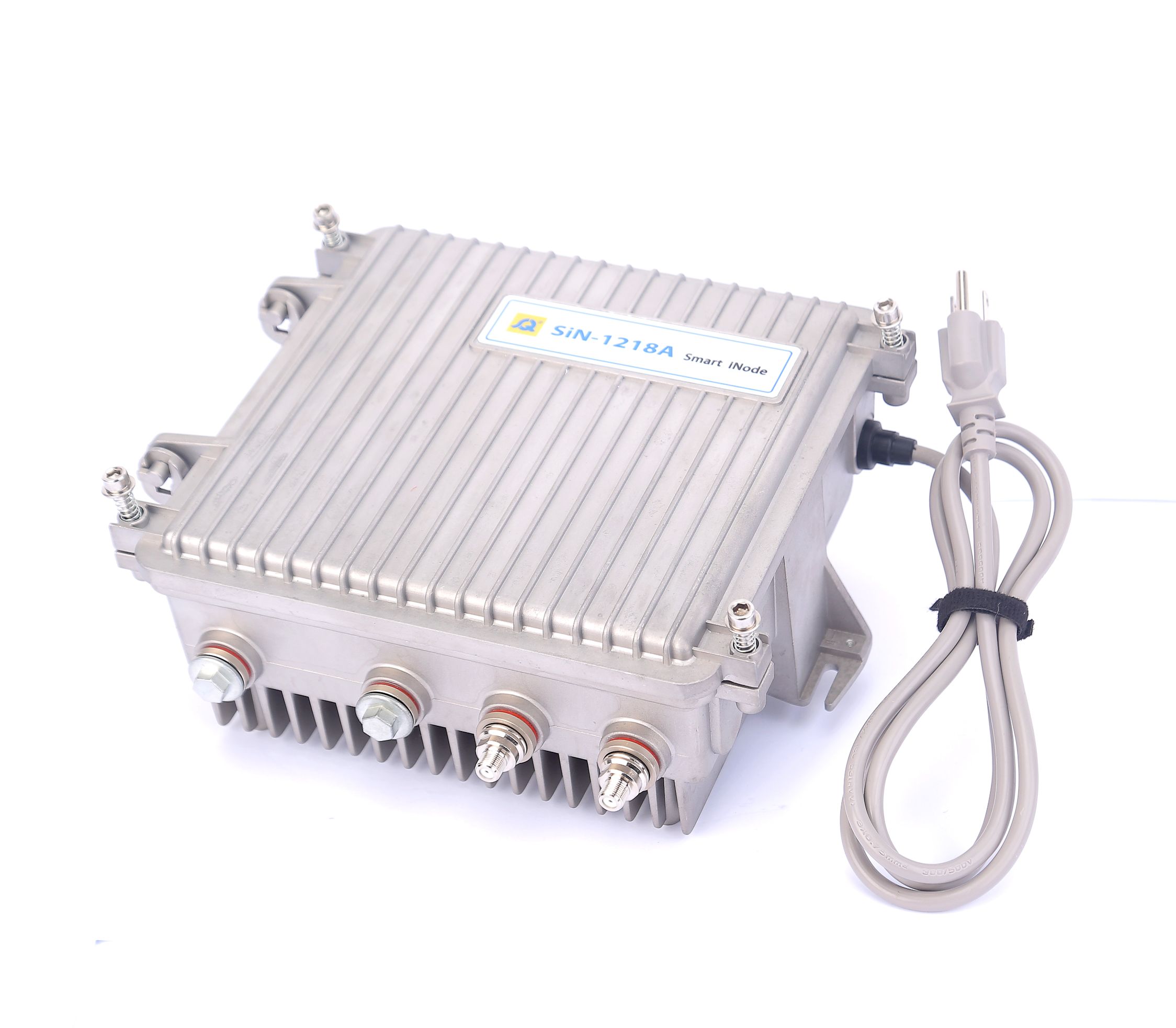

The SiN-1218A Smart iNode is designed to serve as an intelligent node within today’s HFC networks. It can be adjusted via Local Control Software (LCS) a computer or tablet. The device's USB port communicates directly to the Smart iNode controller. The no-touch Smart iNode delivers an innovative approach that enables significant operational savings for operators through automation. No manual configuration is necessary.



Features

l  Supports 1.2 GHz downstream

l  58 dBmV high RF output level @ 1.2 GHz

l  AGC optical input range of - 8 to + 2 dBm

l  No needed of installing and maintaining any external accessories such as pads and  EQs

l  Local monitoring, control and set up via Local Control Software(LCS)

l  Current adjustment for the forward output gain block for power saving according to composite power loading

l  Shut down gain-block independently on interstage amplifier to save power

l  Switch & attenuator for reverse path gain adjust and turn-off for diagnose and control

l  DC voltage monitor capable

l  Second output can be selected via splitter

Specifications

Table 1. Forward Section Specifications

Item

Units

Value

Optical Section

Wavelength

nm

1310 and 1550

Optical Input Power Range

dBm

- 8 - + 2

Optical AGC Range

dBm

- 8 - + 2

RF output level at 0 dBm optical input @ 3.25 % OMI

dBmV

281

Optical Return Loss

dB

45

Optical Connector

-

SC / APC

RF Section





Frequency Range

MHz

105 - 1218

Frequency Response

dB

± 0.75

Internal Tilt (linear)

dB

 16 - 22

RF Output Level

dBmV

58 @ 1218 MHz, 1 output

Return Loss

dB

16

Launch Amplifier Section





Frequency Range

MHz

54 - 1218

Operational Gain

dB

26 - 46 (@ 1218MHz)

Frequency Response

dB

± 0.75

Internal Tilt (linear)

dB

222,3

Return Loss

dB

16

Noise Figure

dB

3

Reference Output Tilt

dB

222,4

RF Test Point

dB

20 ± 0.5

Distortion Section5,6,7,8





C/N

dB

53

Distortion

CTB

CSO

XMOD



dBc





63

62

59

Note:

1.   Minimum receiver RF output level for the stated transmitter percent OMI per channel, with receiver optical input power of 0 dBm. To determine RF output levels at other optical input power levels, add (or subtract) 2 dB in RF level for each 1 dB increase (or decrease) in receiver optical input power.

2.   Reference output tilt and internal tilt are both “Linear” tilt.

3.   Forward internal tilt specified is primarily due to interstage equalizer and output equalizer on board.

4.   The forward reference output tilt specified is the internal tilt of the launch amplifier and the tilt associated with the optical link.

5.   The tilt is defined as the difference between the gain at the start frequency and the gain at the stop frequency 22dB tilt.

6.   VO=58dBmV at 1218MHz, 22dB tilt, 79 analog channels plus 111 digital channels.

7.   79 analog channels, NTSC frequency raster: 55.25MHz to 547.25MHZ, +36dBmV to 45.4dBmV tilted output level, plus 111digital channels, -6dB offset relative to the equivalent analog carrier.

8.   Composite Second Order (CSO) – the CSO parameter (both sum and difference products) is defined by ANSI/SCTE6. Composite Triple Beat (selective voltmeter method), referenced to 100% modulation of the carrier being tested. Carrier to intermodulation Noise (CIN) – The CIN parameter is defined by ANSI/SCTE17.



 Table 2. Reverse Section Specifications

Item

Units

Value

Optical Section

Laser Type

-

DFB

Wavelength

nm

1310, 1550, CWDM, DWDM

Output Power

dBm

3

Optical Return Loss

dB

45

Optical Connector

-

SC / APC

RF Section

RF Input Level

dBmV

0 - 10

Frequency Range

MHz

5 - 85

Frequency Response

dB

± 0.50

Internal Tilt (linear)

dB

± 0.50

Return Loss

dB

16

NPR Dynamic Range

dB

20 @ 30 dB NPR

Launch Amplifier Section





Frequency Range

MHz

5 - 85

Operational Gain

dB

161

Frequency Response

dB

± 0.50

Internal Tilt (linear)

dB

± 0.50

Return Loss

dB

16

Noise Figure

dB

6.5

RF Switch Loss

dB

60

RF Test point

dB

20 ± 0.5

Notes: 1. Reverse operational gain is measured from the reverse RF input port to the reverse transmitter and includes optical interface board gain.


Table 3. General Specifications

Item

Units

Value

Supply Voltage

VAC

110 - 250

Power Consumption

W

32

RF Connectors

-

F - female, Imperial

RF Impedance

75

Operating Temperature

˚C

- 40 - + 60

Humidity

%

5 - 95 %non-condensing

Water and Dust Resistance

-

IP 65

Dimensions (W x H x D)

mm

240 x 205 x 120

Weight

kg

2.5

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

Description

Part Number

SiN-1218A Smart iNode, 1.2GHz, 85/105, SC/APC, 1310nm Reverse Transmitter, 230V, European Plug
