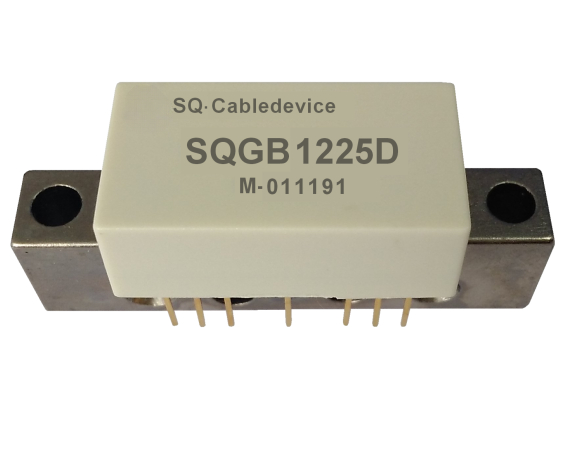

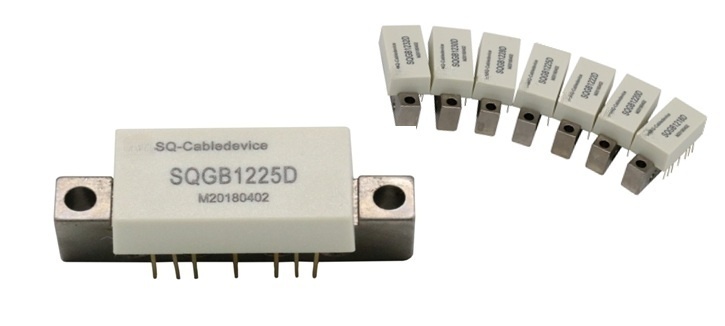

1.2G PD SQGB12XXD series 1.2GHz GaAs Power Doubler Gain Block

Query


The SQGB12XXD is a series of Hybrid Power Doubler gain block. They are optimized for exceptionally low distortion and low noise figure in a 75 Ω power doubler amplifier circuit. They provides excellent input and output return loss over the 45 to 1200 MHz CATV HFC infrastructure.

The device is ideally suited for use in CATV applications where low distortion and high output power are required.

The device package is complied with standard SOT-115J.



Features

l  32/30/28/25/22/20/18 dB Gain

l  24 V DC Bias

l  57 dBmV/CH Output Power Level @ 1200 MHz  (22dB tilt)

l  Excellent Linearity

l  Superior Return Loss Performance

l  Extremely Low Distortion

l  Optimal Reliability

l  Extremely Low Noise

l  Unconditionally Stable Under All Terminations

l  440 mA Max. at 24 VDC



Applications

l  45 to 1200 MHz CATV Amplifier Systems


Electrical Specifications:  T = +25 °C, V = 24 V, Zin = Zout = 75 Ω

Parameter

Units

Min.

Typ.

Max.

Test Conditions




Gain




dB

-

32

-

45 - 1200 MHz

30

28

25

22

20

18

Slope

dB

-

1.0

-

45 - 1200 MHz

Flatness

dB

-

±0.25

-

45 - 1200 MHz

Noise Figure

dB

-

5.5

-

45 - 1200 MHz

Reverse Isolation

dB

-

45

-

-

Input Return Loss

dB

-

16

-

45 - 1200 MHz

Output Return Loss

dB

-

16

-

45 - 1200 MHz

Total Current Consumption (DC)

mA

-

440

-

+ 24 V

Distortion Data 40MHz to 550MHz

CTB*

dB

-

75

-

45dBmV @ 40-550 MHz

CSO*

dB

-

71

-

45dBmV @ 40-550 MHz

XMOD*

dB

-

72

-

45dBmV @ 40-550 MHz

45dBmV @ 59 PAL D/K (analog) channels, flat. Or 57dBmV @ 1200 MHz, tilt extrapolated to 22.0 dB(79 NTSC (analog) channels + 111 digital channels (- 6 dB offset))


Handling Procedures

Please observe the following precautions to avoid damage:



Static Sensitivity

Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper ESD control techniques should be used when handling these devices.



Absolute Maximum Ratings

Parameter

Unit

Rating

RF Input Level

dBmV

75

DC Supply Over-Voltage (5 minutes)

V

30

Storage Temperature

°C

- 40 to +100

Operating Mounting Base Temperature

°C

- 30 to +85

  Caution! ESD sensitive device.                                  RoHS

Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.

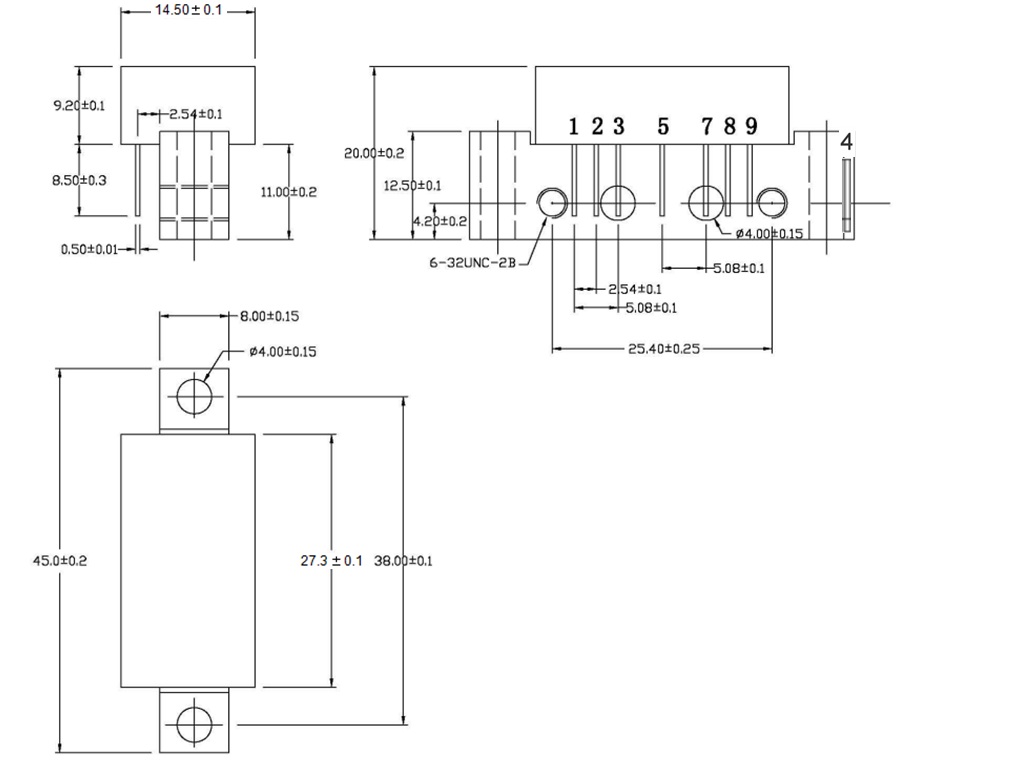

Package Drawing (Dimensions in millimeters)




Ordering information

Description

Part Number

SQGB1218D GaAs Power Doubler Gain Block 1.2GHz 18dB

9940000030

SQGB1220D GaAs Power Doubler Gain Block 1.2GHz 20dB

9940000031

SQGB1222D GaAs Power Doubler Gain Block 1.2GHz 22dB

9940000032

SQGB1225D GaAs Power Doubler Gain Block 1.2GHz 25dB

9940000033

SQGB1228D GaAs Power Doubler Gain Block 1.2GHz 28dB

9940000034

SQGB1230D GaAs Power Doubler Gain Block 1.2GHz 30dB

9940000035

SQGB1232D GaAs Power Doubler Gain Block 1.2GHz 32dB

9940000036
