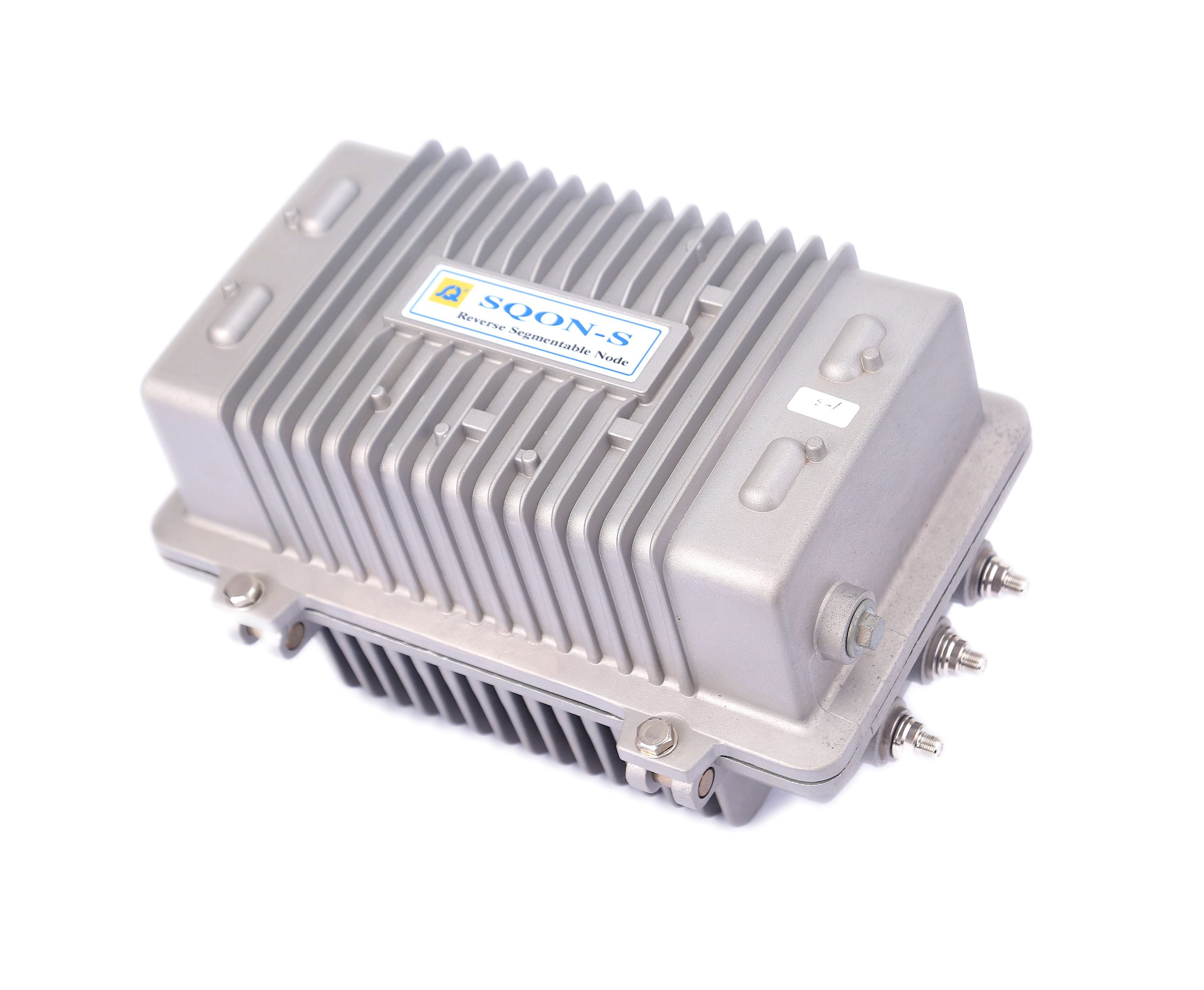

SQON - S Reverse Segmentable Node

Query


SQON - S Reverse Segmentable Node is economic platform with high performance, 4 passive output ports, and compact size optoelectronic nodes with bandwidth up to 1000MHz.

It is capable of providing 50dBmV output level with 4 ports at 1000MHz. Modular design enables the Multiple Service Operators to choose the minimal configuration as the present requirement and expand when need in the future. The SQON - S is able to accommodate 2 forward receiver modules and 2 return path transmitters, with redundancy functionality. The SQON - S can be upgraded to different frequency by change some plug-in modules.

The goal for the product is to provide system designer an economical and robust node in CATV optical network.



Features

1000 MHz bandwidth

50 dBmV high level 4 port output

JXP PAD for RF level attenuation

15 A power current passing capability

Band diplexer selection for 42/54, 65/85, 85/105 and 204/258

HP/LP is plug-in type

The bandwidth of Return path Transmitter is 5 to 220 MHz

Linear equalizer using JXP PAD for slope adjustment

Wide operation temperature range - 40 to + 60 ˚C

With optical power TP and LED display for receiver and transmitter module

With capability of field upgrade operation for redundant 2 pcs of forward receiver and 2 pcs of return transmitters

Wide optical input operation AGC range, - 6 dBm to + 2 dBm

15 MHz HP


Specifications

Table 1. Forward Section Specifications

Item

Units

Value

 Optical Section

 Wavelength

nm

1310 - 1550

 Optical Input Power Range

dBm

- 8 - + 2

 Optical AGC Range

dBm

- - + 2

 Optical Return Loss

dB

45

 Optical Connector

-

SC / APC

 RF Section





 Frequency Range

MHz

54 / 85 / 105 / 258 - 1000

 Frequency Response

dB

± 0.75

 RF tilt

dB

 14 @ 54 / 85 / 10510 @ 258

 RF Output Level

dBmV

50

 Return Loss

dB

16

 RF Test Point (± 1.0)

dB

20

 RF Level control

dB

- 20, 1 dB step

 Slope control

dB

7 - 21 (with inner 7 dB), 1 dB step

 Link Section





 C/N*

dB

51

 Distortion*

CTB

CSO

XMOD



dB





67

63

62

Distortion performance reference output level is 50 dBmV ( 0 dBm optical input power, 3% OMI20 km fiber)Loaded with 79 NTSC CW carriers. Digital refers to 550 MHz to 1 GHz loading with 75 QAM carriers at -10 dB relative to analog CW carrier levels.



Table 2. Reverse Section Specifications

Item

Units

Value

 Optical Section

 Laser Type

-

DFB

 Wavelength

nm

1310, 1550, CWDM, DWDM

 Output Power

dBm

3

 Optical Return Loss

dB

45

 Optical Connector

-

SC / APC

 RF Section

 RF Input Level

dBmV

15 - 25

 Frequency Range

MHz

- 42 / 65 / 85 / 220

 Frequency Response

dB

± 0.75

 Return Loss

dB

16

 RF Test Point (± 1.0)

dB

20

NPR Dynamic Range

dB

20 @ 30 dB NPR

Wink Switch

dB

0, 6, 40

Item

Units

Value

 RFoG Performance (Only for Node w/ Burst Mode RTX)

RF trigger level on  (add 7dB more attenuation on RTX for segmented configuration)

dBmV

10 ± 1

RF trigger level off  (add 7dB more attenuation on RTX for segmented configuration)

dBmV

5 ± 2

Burst on delay time

us

< 1.5

Burst off delay time

us

< 4



Table 3. General Specifications

Item

Units

Value

 Supply Voltage

VAC

40 - 130

 Power consumption

W

45 (Full configuration)

 Max. AC Through Current

A

15

 RF Connectors

-

F - female, Imperial

 RF Impedance

75

 Operating temperature

˚C

- 40 - + 60

 Humidity

%

95 %non-condensing

 Water and Dust resistance

-

IP 68

 Dimensions (W x H x D)

mm

229 x 155 x 305

 Weight

kg

5 (Full configuration)

 Surge

R

IEEE C62.41, 1.2/50us Combination Wave, 6kV

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.


Block Diagram

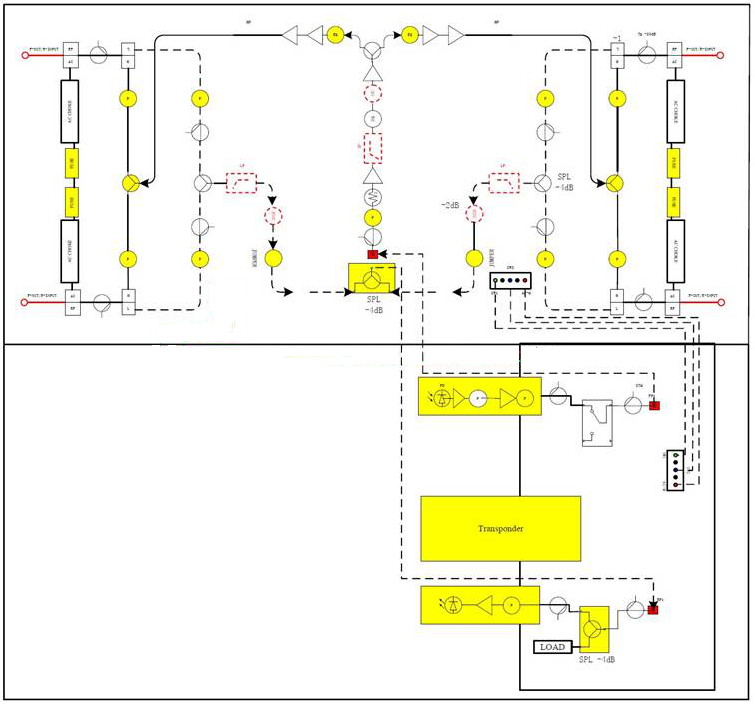

Configuration I: Standard

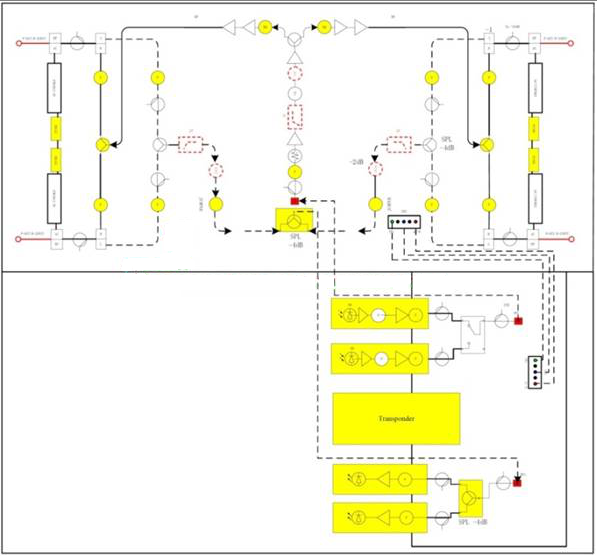

 Configuration II: Forward Path: Redundant

                           Return Path: Redundant

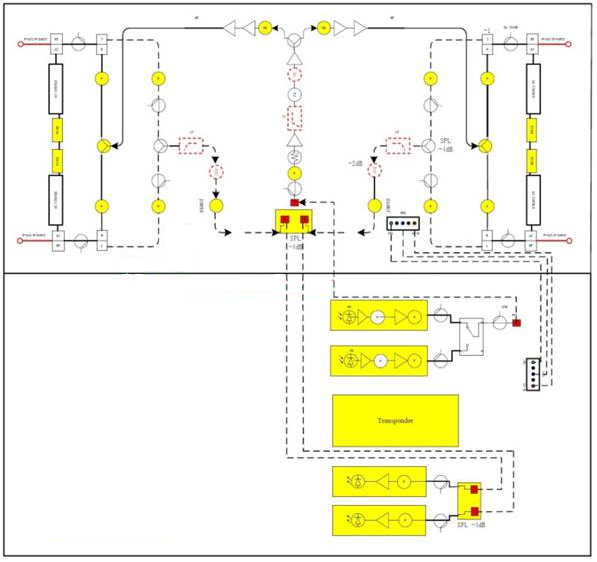

Configuration III: Forward Path: Redundant

                           Return Path: Segmented





Description

Part Number

SQON - S Reverse Segmentable Node, 1GHz, 65/86, SC/APC,

Standard with 1 Rx and 1 Tx

N22Q1G406P6600102002

SQON - S Reverse Segmentable Node, 1GHz, 65/86, SC/APC,

Redundant with 2 Rx and 2 Tx

N22Q1G406P6600202R22

SQON - S Reverse Segmentable Node, 1GHz, 65/86, SC/APC,

Redundant with 2 Rx, Segmented with 2 Tx

N22Q1G406P6600202S22
