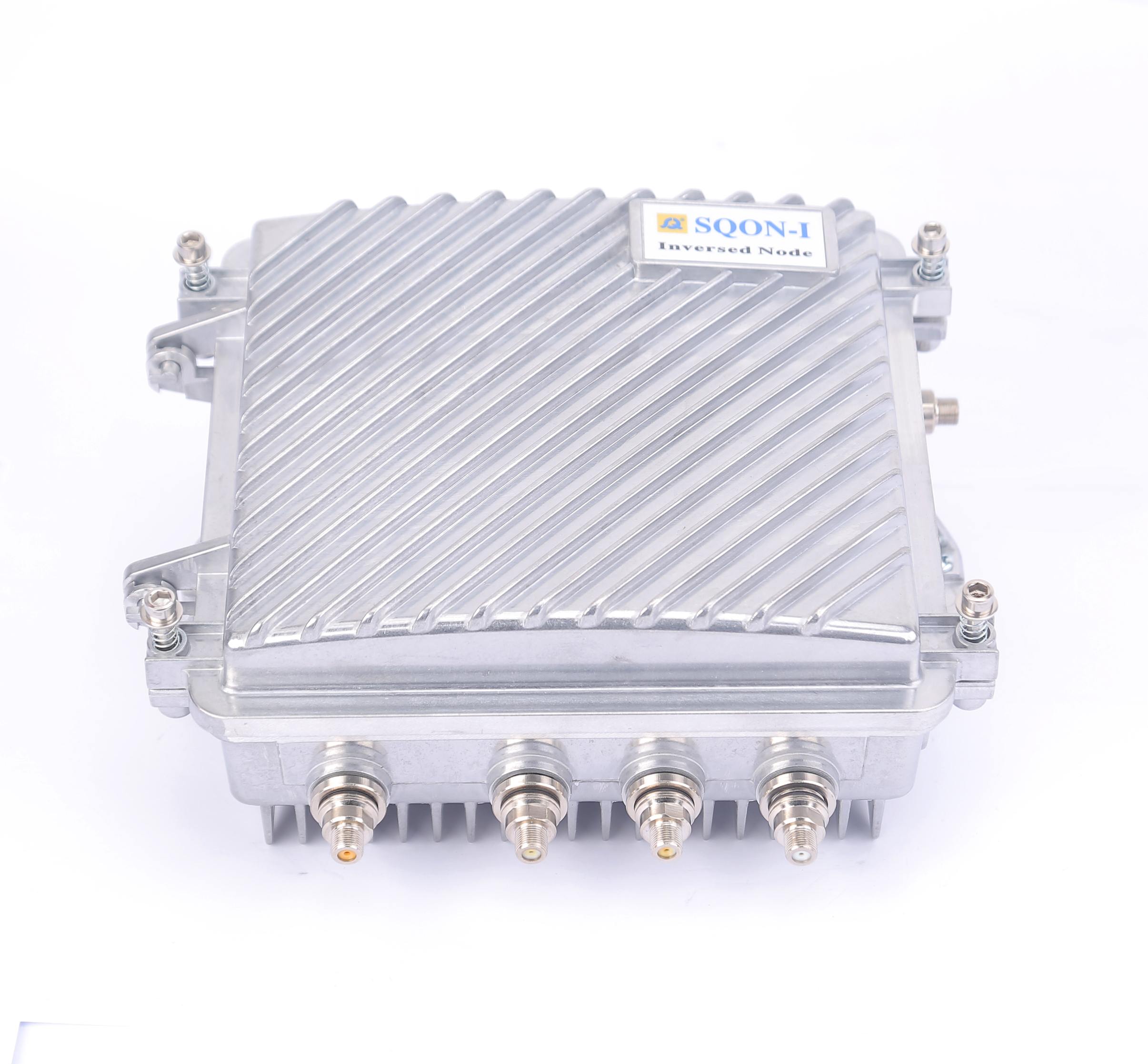

SQON-I Inversed Optical Node

Query


SQON-I Inversed Optical Node is a two-way node with 1000 MHz bandwidth. It is specifically designed for use in HFC expansion networks. It provides excellent performance with high reliability and a user-friendly layout. It contains a 1550nm transmitter with RF input AGC function and a 4-way optical passive splitter for system expansion in the forward path, and also contains a 1310nm return receiver with a 4-way optical passive combiner in the return path. It has a high return RF output level for uplink injection. Plug-in attenuator and equalizer for easy adjusting RF level and output slope.



Features

Supports 1000MHz bandwidth

RF Input AGC

DFB Laser

Plug-in PAD and EQ, balancing easily

Outdoor housing, IP67 water and dust Ingress protection rating

F-female RF ports, external test point

External independent power port


Specifications

Table 1. Forward Path Optical Specifications

Item

Units

Value

Laser Type

-

DFB

Optical Wavelength

nm

1550 ± 10

Optical Output Power

dBm

-3.5 @ each port



Table 2. Forward Path RF Specifications

Item

Units

Value

Frequency Range

MHz

54 - 1000

Frequency Response

dB

±0.75

RF Input Level

dBµV

75 - 90

Plug-in Attenuator

dB

0 - 20, 1 dB step

Plug-in Equalizer

dB

0 - 18, 1.5 dB step

CNR*

dB

46

CTB*

dB

62

CSO*

dB

57

* Performance measured at -3.5 dBm input optical receiver, 42 CENELEC channels.



Table 3. Return Path Optical Specifications

Item

Units

Value

Optical Wavelength

nm

1310 ± 20

Optical Input Range

dBm

-5.5 - 0



Table 4. Return Path RF Specifications

Item

Units

Value

Frequency Range

MHz

5 - 42

RF Output Level @ 0 dBm

dBµV

95

Frequency Response

dB

±0.75

Plug-in Attenuator

dB

0 - 20, 1 dB step

Plug-in Equalizer

dB

0 - 18, 1.5 dB step



Table 5. General Specifications

Item

Units

Value

Power Supply

V AC

35 - 90

Power Consumption

W

20

Max. AC Through Current (continuous)

A

7

RF Connectors

-

F - female

RF Impedance

75

RF Return Loss

dB

16

RF Test Point

dB

-20

Optical Connector

-

SC/APC

Optical Return Loss

dB

45

Housing Dimensions (W x H x D)

mm

260 x 240 x 150

Weight

kg

2.7

Water/Dust Ingress Protection Rating

-

IP 67

Operating Temperature

°C

-40 - +55

Storage Temperature

°C

-40 - +80

Relative Humidity Range

-

5% - 95%

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C).

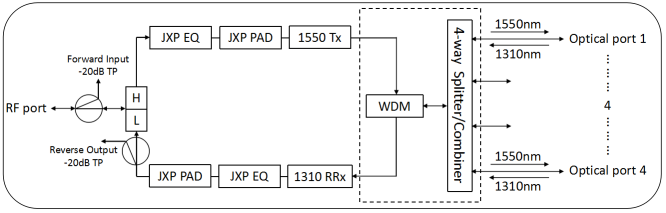

Block Diagram






Ordering information

The product is available in a wide variety of split, forward wavelength, reverse transmitters  type and output power, optical connector type. Consult your Customer Service Representative or Applications Engineer to determine the best choose for your particular application.

Description

SQON-I Inversed Node, 1550nm Transmitter, 1310nm Reverse receiver, 4-Way Splitter/Combiner
