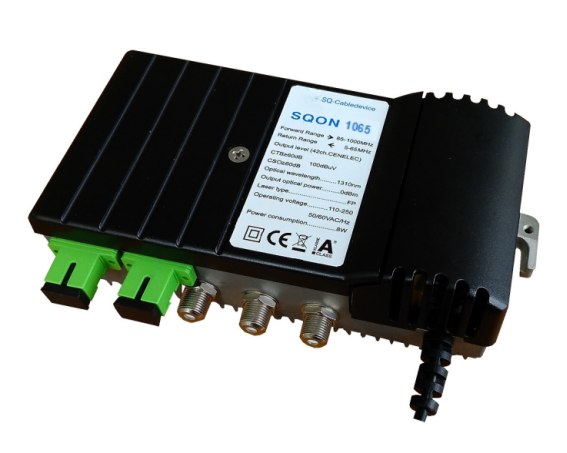

SQON 1065 Optical Node

Query


SQON 1065 Optical Node is a 1 GHz compact size node specially designed to meet fiber-deep architecture. This node provides excellent forward and reverse path performance combined with high reliability and a user-friendly layout.



Features

Supports 1 GHz downstream

GaAs technology in use

LED indicators for optical input, output and power

AGC optical input range of - 6 to + 2 dBm

100 dBµV RF output level, other RF output level optional

Step Attenuators are used to adjust gain and interstage slope

External RF test points for forward and reverse path

Low power consumption


Specifications

Table 1. Forward Section Specifications

Item

Units

SQON 1065 - 1

SQON 1065 - 2

Optical Section

Wavelength

nm

1290 - 1600

Optical Input Power Range

dBm

- 6 - + 2

Optical AGC Range

dBm

- 6 - + 2

Optical Return Loss

dB

45

Optical Connector

-

SC / APC

RF Section





Frequency Range

MHz

85 - 1000

Frequency Response

dB

± 0.75

Attenuator Adjustable Range

dB

0 - 10, 2 dB step

Equalizer Adjustable Range

dB

0 - 10, 2 dB step

RF Output Level1

dBµV

103

100

Return Loss

dB

18 @ 85 MHz decreasing with - 1.5 dB/octave.

RF Output Test Point (±0.75)

dB

- 20

Link Section





C/N2

dB

50

Distortion @ 59 PAL D/K + Digitial2

CTB

CSO



dB

dB



60

60

 Note:  1. RF output level with 0dB RF attenuator, -6 to +2 dBm optical input power, 4% OMI.

             2. Distortion performance reference output level is 103 dBµV (SQON 1065 - 1) or 100 dBµV (SQON 1065 - 2)( 0 dB slope, - 3 dBm optical input power, 4% OMI). Loaded with 59 PAL D/K CW carriers from 47-550 MHz.Digital refers to 550 MHz to 1 GHz loading with QAM carriers at -10 dB relative to analog CW carrier levels.



Table 2. Reverse Section Specifications

Item

Units

Value

Laser Type

-

FP

Wavelength

nm

1310 ± 20

Output Power

dBm

0

Optical Return Loss

dB

45

Optical Connector

-

SC / APC

Frequency Range

MHz

5 - 65

Frequency Response

dB

± 0.5

Attenuator Adjustable Range

dB

0 - 10, 2 dB step

RF Input Level

dBµV

75 - 95

Return Loss

dB

16

RF Test Point ( ± 0.75 )

dB

- 20



Table 3. General Specifications

Item

Units

SQON 1065 - 1

SQON 1065 - 2

Power Consumption

W

9.5

8.0

Supply Voltage

V AC

110 - 250

RF Connectors

-

F - female, Imperial

RF Impedance

75

Dimensions (W x H x D)

mm

174 x 84 x 53

Weight

kg

0.7

Operating Temperature

°C

-10 - +50

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.


Description

Part Number

SQON 1065 - 1 Optical Node

R12P1G43653012

SQON 1065 - 2 Optical Node

R12P1G40653012
