Infinity Premise Amplifier

Query

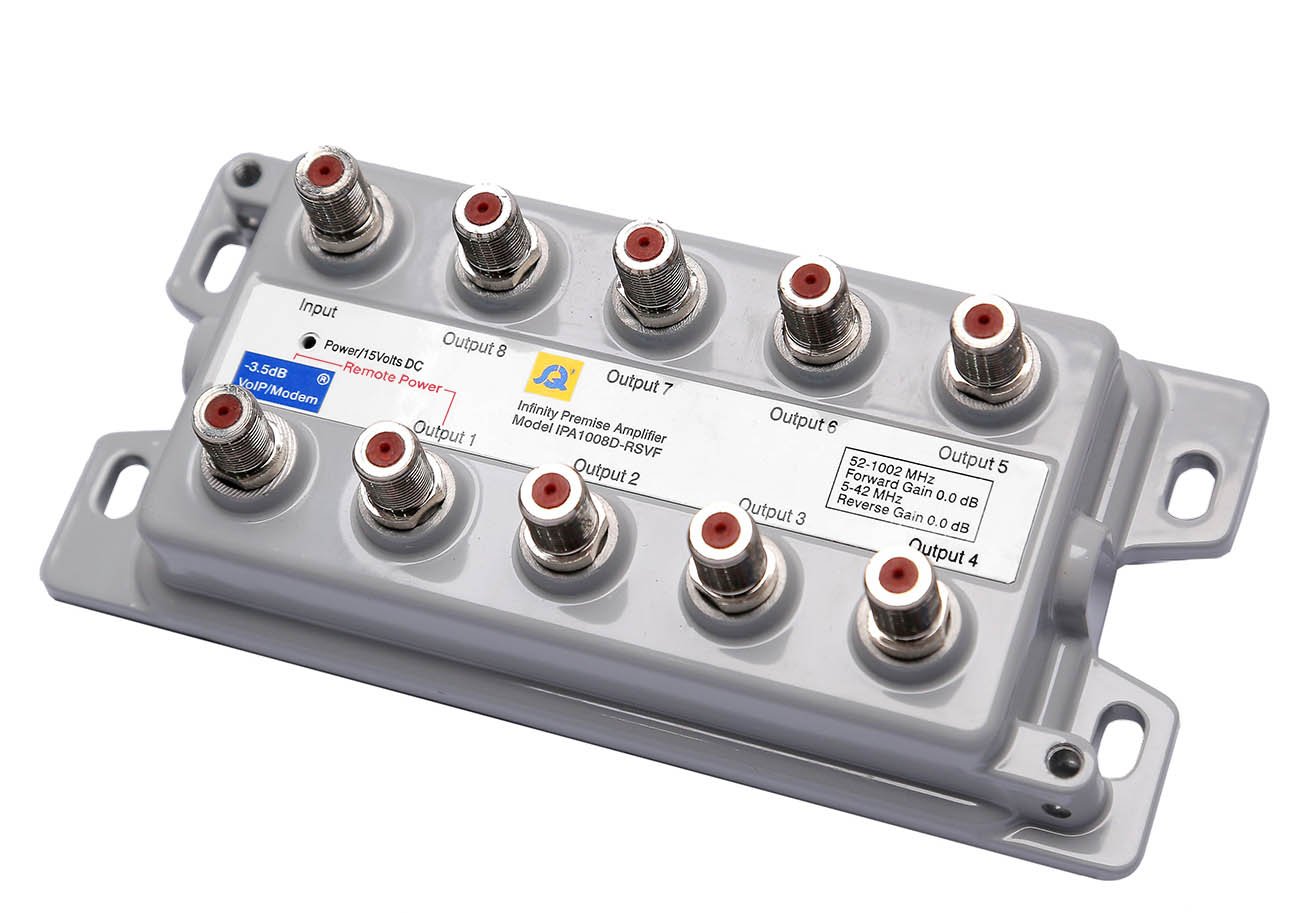

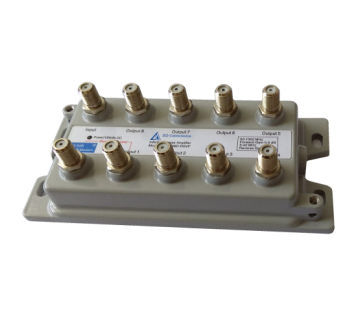

The Infinity Premise Amplifier is new MultiMedia drop amplifiers. The products have 8 outputs to feed entertainment terminals distributed in the subscriber’s premises.



Features

Supports 1.2 GHz downstream

Uninterrupted VoIP Service

1-Passive VoIP / Cable Modem Data Port

8 Amplified RF Outputs

Active Reverse

Unique True Flex Housing







Table 1. Forward Section Specifications

Item

Units

Model IPA1008D-RSVF

Condition

Frequency Range

MHz

54 - 1002



Gain

dB

0.0 ± 0.7

54 - 1002 MHz

Slope

dB

< 1.5

54 - 1002 MHz

Flatness

dB p-p

< 1.0

54 - 1002 MHz

Return Loss

dB

> 20

54 - 1002 MHz

Isolation

dB

> 22

54 - 1002 MHz

Channel Loading



77 NTSC analog + 38 digital ( 64 QAM ) @ - 6 dB to analog

54 - 1002 MHz

Rated Input Level

dBmV

10

Flat

CTB

-dBc

> 85

10 dBmV in

CSO

-dBc

> 70

10 dBmV in

Noise Figure

dB

< 8



Group Delay

ns

< 20

ch. 2 - 4 ( - 3.58 MHz span)



ns

< 5

ch. 5 ( - 3.58 MHz span)



Table 2. Reverse Section Specifications

Item

Units

Model IPA1008D-RSVF

Condition

Frequency Range

MHz

5 - 42



Gain

dB

0.0 ± 0.5

5 - 42 MHz

Flatness

dB p-p

< 1.0

5 - 42 MHz

Return Loss

dB

> 18

5 - 42 MHz



dB

> 25

15 - 40 MHz



dB

> 18

40 - 42 MHz

Isolation

dB

> 25

5 - 42 MHz

Noise Figure

dB

< 17



Group Delay

ns

< 20

5 - 6.5 MHz 1.5 MHz span



ns

< 10

6.5 - 40 MHz 1.5 MHz span



ns

< 30

40 - 42 MHz 2.0 MHz span



 Table 3. Passive Data Port Specifications

Item

Units

Model IPA1008D-RSVF

Condition

Frequency Range

MHz

5 - 1002



Flatness

dB p-p

< 0.5

5 - 1002 MHz

Insertion Loss

dB

- 3.8 ± 0.5

5 - 1002 MHz

Return Loss

dB

> 20

5 - 1002 MHz



Table 4. General Specifications

Item

Units

Model IPA1008D-RSVF

Condition

Surge Withstand (All Ports)



6kV A3 ring

IEEE C62.41

Supply Voltage



6kV B3 combo

IEEE C62.41

EMI

dB

> 130

5-1525 MHz

Dimensions (W x H x D)

inch

(mm)

3.00 x 1.77 x 6.69

( 76 x 45 x 170 )



DC Current Consumption

mA

280

12 - 15 VDC

Temperature

F

(°C)

- 40 - + 140

( - 40 - + 60 )



Water proof

psi

15



  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.




Description

Part Number

Infinity Premise Amplifier IPA1008D-RSVF

TBD
