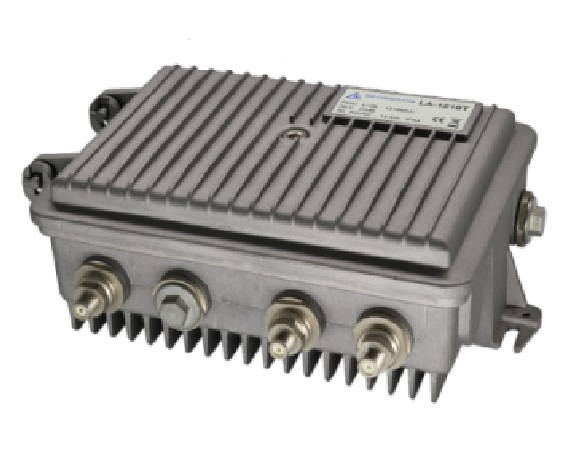

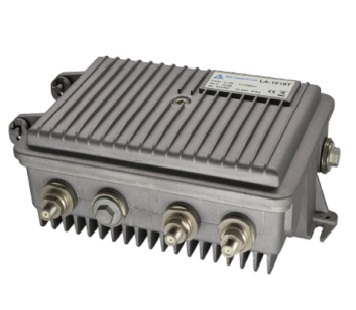

LA - 1208T 1.2GHz Amplifier

Query


LA-1208T RF Amplifier is a 1.2 GHz bandwidth two-way amplifier. It features two gain modes (High gain or Low gain) for more flexible operation. Different gain mode can be set in the field depending on the system status. Forward higher gain can be used in distribution systems and lower gain is suitable for line extension application. Return gain can also be set to high or low mode depending on the link loss in the return path.

GaAs technology is used, that guarantees the excellent CTB and CSO performance. Both output level and slope can be adjusted using standard JXP PADs to minimize the spares.

The frequency split can be changed in the field for system upgrading easily.


Features

Supports 1.2 GHz bandwidth

On site changing frequency split

Compact design, small and exquisite

GaAs technology in use

Improved ESD and Surge protection

Low noise figure

High gain / Low gain optional for both forward and return path

Standard JXP plug-in PADs for all adjustments of attenuation and equalization

Second output can be selected via splitter or tap


Specifications

Table 1. Forward Path Specifications

Item

Units

Value

Pass Band

MHz

85/105/258 - 1218

Gain

dB

40 / 32

Frequency Response

dB

± 0.75

Reference Output Level

dBuV

108

Attenuator Adjustable Range

dB

0 - 20, 1 dB step

Equalizer Adjustable Range

dB

0 - 20, 1 dB step

Return Loss

dB

16 @ 85 - 1000 MHz

14 @ 1001 - 1218 MHz

RF Test Point

dB

- 20

Noise Figure

dB

6 (1 GHz), 6.5 (1 GHz)

CTB @ CENELEC 42 CH

dB

60

CSO @ CENELEC 42 CH

dB

60

Hum Modulation @ 5 A

dB

70

MER

dB

41

BER

-

1 x 10-8

Group Delay (in 1 MHz bandwidth)

ns

20



Table 2. Return Path Specifications

Item

Units

Value

Pass Band

MHz

5 - 65/85/204

Gain

dB

30 / 20

Frequency Response

dB

± 0.75

Return Loss

dB

18

RF Test Point

dB

- 20

Noise Figure

dB

4.5 ( 10 MHz)

RF Input Dynamic Range

@ MER 41 dB & BER 1 x 10-8

dB

25

Group Delay (in 1 MHz bandwidth)

ns

20



Table 3. General Specifications

Item

Units

Value

Power Consumption (High Gain / Low Gain)

W

14.5 / 13.5

Supply Voltage

V AC

26 - 65

RF Connectors

-

F - female, Imperial

Dimensions ( W x H x D)

mm

230 x 164 x 84

Weight

kg

1.5

Water/Dust Ingress Protection Rating

-

IP 54

Operating Temperature

°C

- 40 - + 55

Storage Temperature

°C

- 40 - + 80

Relative Humidity Range

-

5% - 95%

EMC Compatibility

-

EN 60728-2

Safety

-

EN 60728-11

ESD / Surge



4 kV / 6 kV, IEC 60728-3

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.


Description

Part Number

LA - 1208T RF Amplifier, 1.2G, 65/85

A12T1240630600
