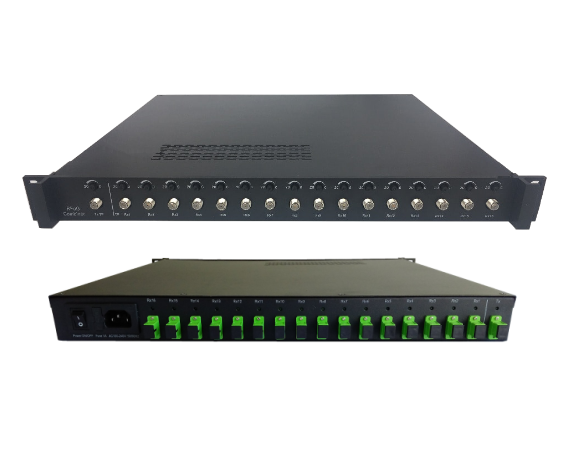

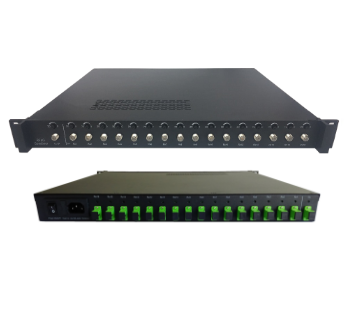

RFoG Repeater

Query


The Radio Frequency over Glass (RFoG) solution enables cable operators to offer a Fiber-to-the-Home (FTTH) architecture without changes to standard equipment in the headend or home.

With the success of RFoG deployments comes an issue, Optical Beat Interference (OBI), it can be generated at the receiver.

RFoG Repeater is an OBI-free solution, enables multiple MAC domains and high-performance upstream operation in an RFoG environment, full DOCSIS 3.1 channel bonding to be deployed efficiently utilizing all available upstream bandwidth, allows multiple upstream RF channel transmissions and therefore, supports higher subscriber penetrations.


Features

OBI-free, cost effective

Passive optical distribution for downstream

16-way RF combination for upstream

Support DOCSIS 3.1

DFB laser for upstream

LED indicators for optical input and output

High-sensitivity, low-noise optical receiver

-20dB external RF test points

Standard JXP plug-in PADs for all adjustments of receivers output and transmitter input

19 inch, 1RU box, compact size


Specifications

Item

Units

Value

Downstream Section

Wavelength

nm

1550 ± 20

Optical Insertion Loss

dB

15

Optical Connector

-

SC / APC

Optical Return Loss

dB

 45

Upstream Section





Optical Input Power

dBm

 - 5

Receiver Wavelength

nm

1610 ± 20 (other optional)

Transmitter Wavelength

nm

1610 ± 20 (other optional)

Optical Output Power

dBm

2 (other optional)

Optical Connector

-

SC / APC

Optical Return Loss

dB

45

Frequency Range

MHz

5 - 85 (other optional)

RF Test Point

dB

- 20 ± 0.75

General Section





Power Supply

VAC

100 - 240

Power Consumption

W

22

Power Cord

-

Optional

Dimensions (W x H x D)

mm

483 x 45 x 445

Weight

kg

4.9

Operating Temperature

°C

0 - 55

Storage Temperature

°C

- 20 - 70

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.


Block Diagram





Description

Part Number

RFoG Repeater, 1550/1610, 5-85, EU cord

SQOF-U-1616-085-EU

RFoG Repeater, 1550nm Downstream, other optional

SQOF-U-aabb-ccc-XX

aa - Receiver wavelength

bb - Transmitter wavelength

          13 - 1310nm

          16 - 1610nm

ccc - Return path bandwidth

065 - 5 to 65MHz

085 - 5 to 85MHz

204 - 5 to 204MHz

XX - Power cord

          EU - EU power cord

          US - US power cord

          CH - China power cord
