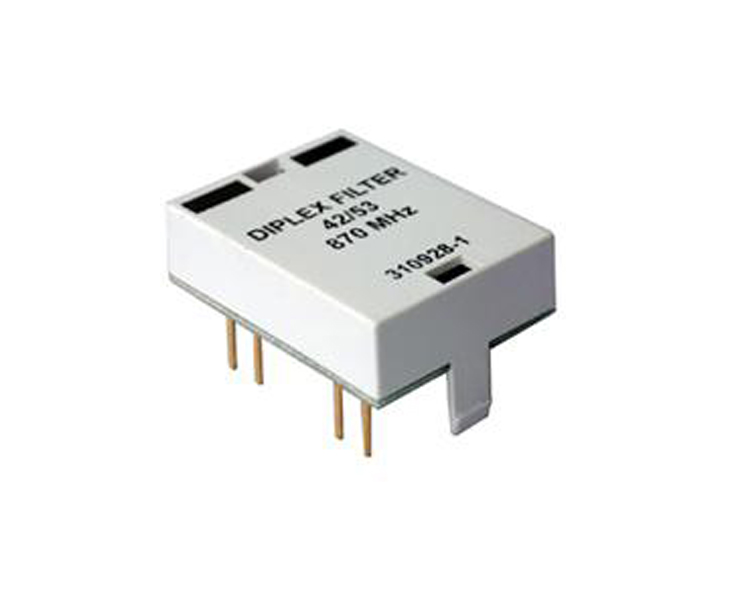

1 GHz Diplex Filter 310928-1/2

Query


1 GHz Diplex Filter is a complete diplex filter with 75 ohms at all ports. This filter isolates the forward and reverse bands so that the two signals can share the same coax transport. The reverse path frequencies pass through the low-pass filter which has a cutoff frequency of 30/42/65 MHz, and the forward path frequencies pass through the high-pass filter which has a cutoff frequency of 47/54/88 MHz. The high-pass filter works out to 1 GHz. Each of these filters, together with additional filtering provided on the amplifier motherboards, has enough isolation to prevent the amplifier from oscillating. It also provides enough isolation so that there is no interference between the forward and reverse paths.

These accessories can be used for nodesamplifiers, line extenders, etc.


Specifications

Item

Units

30/47

42/54

65/88

Frequency Range

MHz

5-30

47-1000

5-42

54-1000

5-65

88-1000

Insertion Loss

dB

1.0

1.0

1.0

1.0

1.0

1.0

Flatness

dB

1.0

1.0

1.0

1.0

1.0

1.0

Isolation

dB

≥45

≥45

≥45

≥45

≥45

≥45

Return Loss

dB

20

20

20

20

20

20

Impedance

Ω

75

 Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.


Dimensions


Description

Part Number

 1 GHz 30/47 Diplex Filter - 1

310928-1-30/47

 1 GHz 30/47 Diplex Filter - 2

310928-2-30/47

 1 GHz 42/54 Diplex Filter - 1

310928-1-42/54

 1 GHz 42/54 Diplex Filter - 2

310928-2-42/54

 1 GHz 65/88 Diplex Filter - 1

310928-1-65/88

 1 GHz 65/88 Diplex Filter - 2

310928-2-65/88
