1.2GHz Forward Cable Equalizer

Query

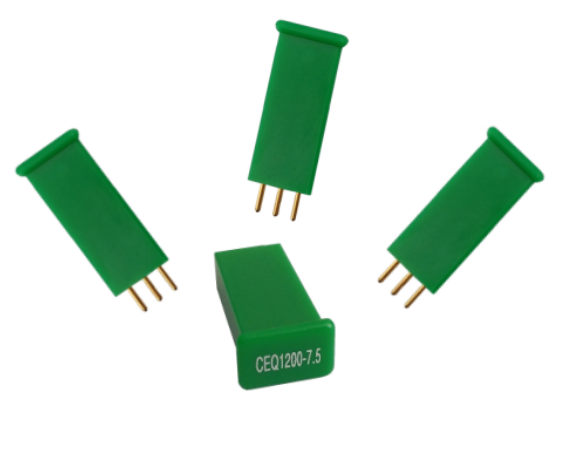

1.2GHz Forward Cable Equalizers produce a tilt that frequency response is opposite to coaxial cable. They are used to compensate the tilt produced by coaxial cable in order to achieve the desired flatness. The dB values and rated high frequency 1218 MHz are printed on the top of each equalizer.

It is JXP series and has two types of thickness. The thickness of A-type is 5.6 mm, and B-type is 4.0 mm.

These accessories can be used for amplifiers, line extenders, etc.


Specifications

ItemUnitsValue
EQ ValuesdB1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 18.0
Tilt ( 52 to 1218 MHz )dB1.2 2.5 3.7 4.9 6.2 7.4 8.6 9.8 11.1 12.3 13.5 14.8
Tilt ( 52 to 1000 MHz )dB1.1 2.2 3.2 4.3 5.4 6.4 7.5 8.6 9.7 10.7 11.8 12.9
Tilt ( 52 to 870 MHz )dB1.0 2.0 2.9 3.9 4.9 5.8 6.8 7.8 8.7 9.7 10.7 11.6
FrequencyMHz52 - 1218
Tolerance EQ Val.max.dB± 0.5
Insertion LossdB1.0
FlatnessdB± 0.2
Return LossdB18.0
ImpedanceΩ75

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

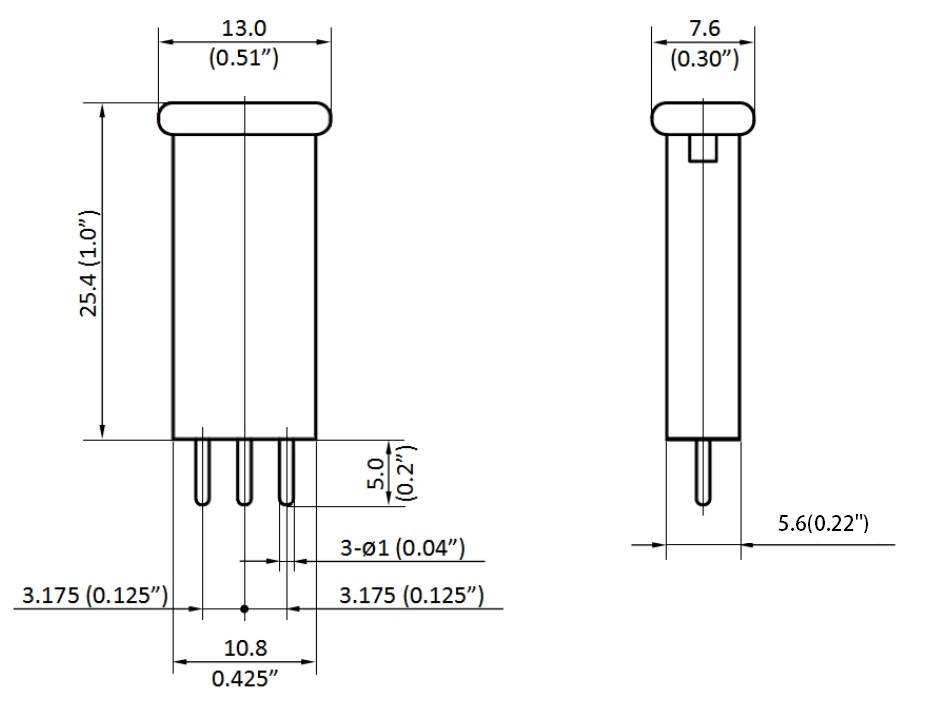

Dimensions

Type A                                      B Type





Ordering information

Description

Part Number

Type A

Type B

1.2 GHz JXP Forward Cable Equalizer 1.5dB, 1 inch, Green

9907000101

9907000130

1.2 GHz JXP Forward Cable Equalizer 3.0dB, 1 inch, Green

9907000102

9907000131

1.2 GHz JXP Forward Cable Equalizer 4.5dB, 1 inch, Green

9907000103

9907000132

1.2 GHz JXP Forward Cable Equalizer 6.0dB, 1 inch, Green

9907000104

9907000133

1.2 GHz JXP Forward Cable Equalizer 7.5dB, 1 inch, Green

9907000105

9907000134

1.2 GHz JXP Forward Cable Equalizer 9.0dB, 1 inch, Green

9907000106

9907000135

1.2 GHz JXP Forward Cable Equalizer 10.5dB, 1 inch, Green

9907000107

9907000136

1.2 GHz JXP Forward Cable Equalizer 12.0dB, 1 inch, Green

9907000108

9907000137

1.2 GHz JXP Forward Cable Equalizer 13.5dB, 1 inch, Green

9907000109

9907000138

1.2 GHz JXP Forward Cable Equalizer 15.0dB, 1 inch, Green

9907000110

9907000139

1.2 GHz JXP Forward Cable Equalizer 16.5dB, 1 inch, Green

9907000111

9907000140

1.2 GHz JXP Forward Cable Equalizer 18.0dB, 1 inch, Green

9907000112

9907000141
