5 - 42 MHz Reverse Linear Equalizer

Query

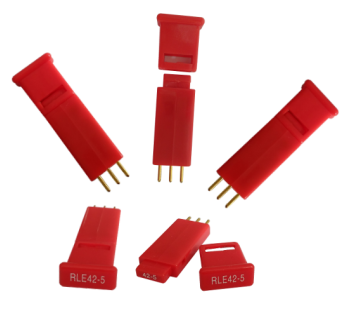

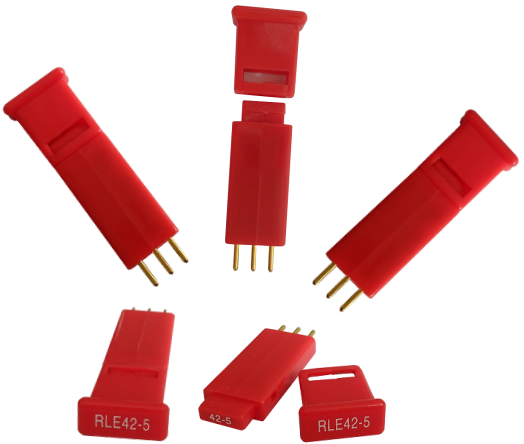

5 - 42 MHz Reverse Linear Equalizers produce a linear tilt that frequency response is opposite. They are normally used to achieve desired tilt during station balancing to counteract the tilt. The dB values and rated frequency 42 MHz are printed on the top of each equalizer.

It contains main body and top part. Its length is 1.06 when take away the top part.

These accessories can be used for node, amplifiers, line extenders, etc.


Specifications

ItemUnitsValue
EQ ValuesdB345
Tilt ( 5 to 42 MHz )dB345
FrequencyMHz5 - 42
Tolerance EQ Val.max.dB± 0.5
Insertion Loss @ 42 MHzdB1.0
FlatnessdB± 0.3
Return LossdB18.0
ImpedanceΩ75

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.


Dimensions





DescriptionPart Number
5 - 42 MHz JXP Reverse Linear Equalizer 3 dB, 1.4 inch, Red, Breakaway99070103
5 - 42 MHz JXP Reverse Linear Equalizer 4 dB, 1.4 inch, Red, Breakaway99070104
5 - 42 MHz JXP Reverse Linear Equalizer 5 dB, 1.4 inch, Red, Breakaway99070105
