1.2GHz Forward Linear Equalizer

Query

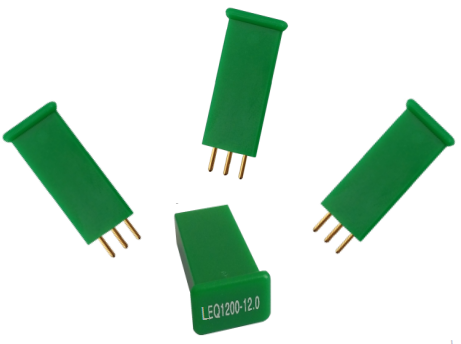

1.2GHz Forward Linear Equalizers produce a linear tilt that frequency response is opposite. They used in interstage equalizer location to achieve the desired station output tilt. The dB values and rated high frequency 1218 MHz are printed on the top of each equalizer.

It is JXP series and has two types of thickness. The thickness of A-type is 5.6 mm, and B-type is 4.0 mm.

These accessories can be used for node, cable TV units, etc.


Specifications

ItemUnitsValue
EQ ValuesdB1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 18.0
Tilt ( 52 to 1218 MHz )dB1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 18.0
Tilt ( 52 to 1000 MHz )dB1.2 2.4 3.7 4.9 6.1 7.4 8.6 9.8 11.0 12.3 13.5 14.7
Tilt ( 52 to 870 MHz )dB1.1 2.1 3.2 4.2 5.3 6.4 7.4 8.5 9.5 10.6 11.6 12.7
FrequencyMHz52 - 1218
Tolerance EQ Val.max.dB± 0.5
Insertion LossdB1.0 1.21.3
FlatnessdB± 0.2± 0.25
Return LossdB18.0 17.0
ImpedanceΩ75

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

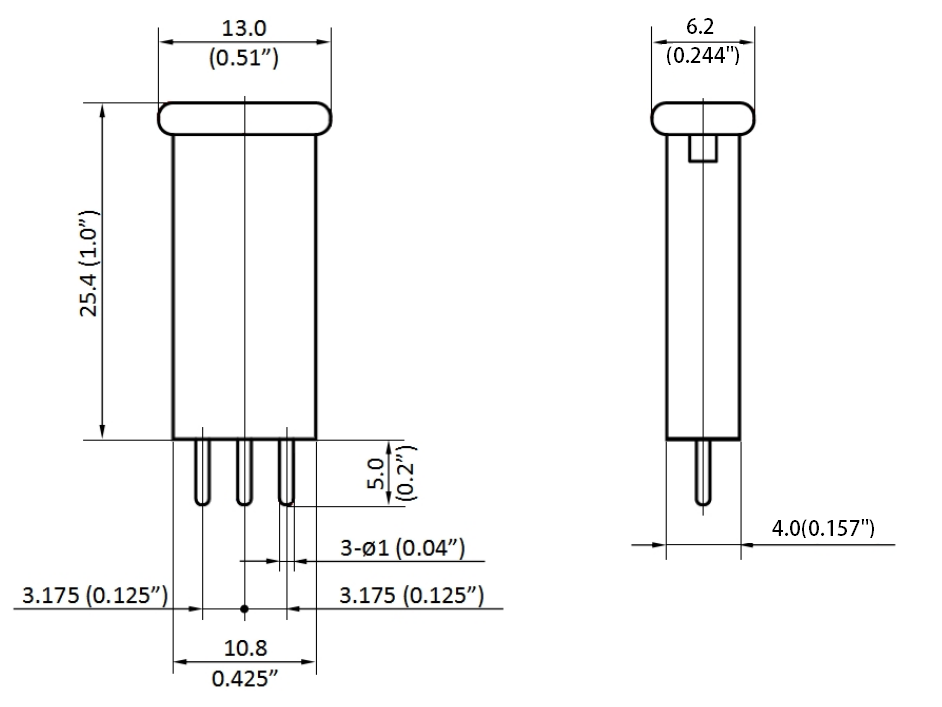

Dimensions


DescriptionPart Number
Type AType B
1.2 GHz JXP Forward Linear Equalizer 1.5dB, 1 inch, Green 9907000199070021
1.2 GHz JXP Forward Linear Equalizer 3.0dB, 1 inch, Green 9907000299070022
1.2 GHz JXP Forward Linear Equalizer 4.5dB, 1 inch, Green 9907000399070023
1.2 GHz JXP Forward Linear Equalizer 6.0dB, 1 inch, Green 9907000499070024
1.2 GHz JXP Forward Linear Equalizer 7.5dB, 1 inch, Green 9907000599070025
1.2 GHz JXP Forward Linear Equalizer 9.0dB, 1 inch, Green 9907000699070026
1.2 GHz JXP Forward Linear Equalizer 10.5dB, 1 inch, Green 9907000799070027
1.2 GHz JXP Forward Linear Equalizer 12.0dB, 1 inch, Green 9907000899070028
1.2 GHz JXP Forward Linear Equalizer 13.5dB, 1 inch, Green9907000999070029
1.2 GHz JXP Forward Linear Equalizer 15.0dB, 1 inch, Green9907001099070030
1.2 GHz JXP Forward Linear Equalizer 16.5dB, 1 inch, Green9907001199070031
1.2 GHz JXP Forward Linear Equalizer 18.0dB, 1 inch, Green 9907001299070032
