0.45 JXP Pads

Query

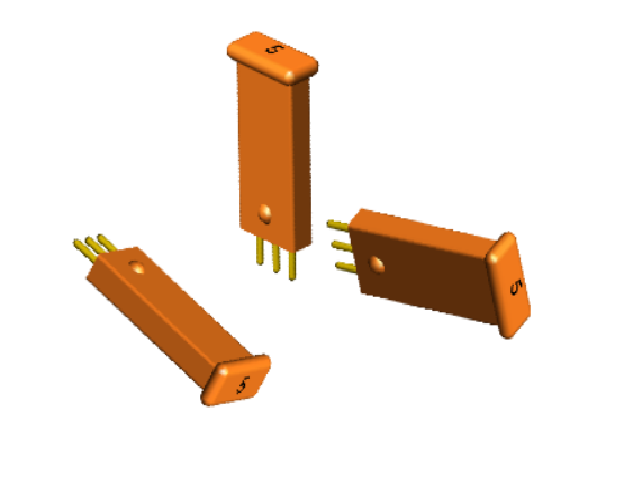

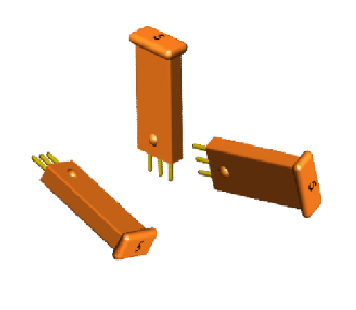

1.2 GHz JXP Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band. The pads are used during amplifier balancing to adjust amplifier signal levels as needed. The fixed loss produced (dB) is equal to the value printed on the top of each pad. The pads listed below are rated for operation up to 1.2 GHz. Within specific amplifier types, the pads are also used as equalizers.

These pads can be used for amplifiers, line extenders, nodes, combiners, etc.


Specifications

Item

Units

Value

Attenuation Values

dB

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Frequency

MHz

0 - 1200

Tolerance at 5 MHz

dB

± 0.2

Flatness

dB

± 0.5

Return Loss

dB

20.0

Impedance

75

 Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

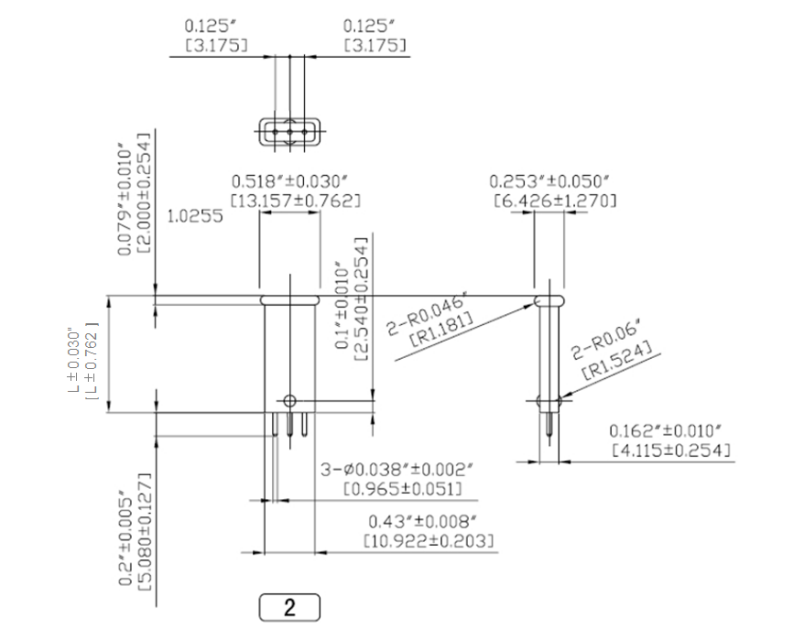

Dimensions







Description

Part Number

1.2 GHz JXP 0.45 Attenuator, 0dB, Black

99040150

1.2 GHz JXP 0.45 Attenuator, 1dB, Black

99040151

1.2 GHz JXP 0.45 Attenuator, 2dB, Black

99040152

1.2 GHz JXP 0.45 Attenuator, 3dB, Black

99040153

1.2 GHz JXP 0.45 Attenuator, 4dB, Black

99040154

1.2 GHz JXP 0.45 Attenuator, 5dB, Black

99040155

1.2 GHz JXP 0.45 Attenuator, 6dB, Black

99040156

1.2 GHz JXP 0.45 Attenuator, 7dB, Black

99040157

1.2 GHz JXP 0.45 Attenuator, 8dB, Black

99040158

1.2 GHz JXP 0.45 Attenuator, 9dB, Black

99040159

1.2 GHz JXP 0.45 Attenuator, 10dB, Black

99040160

1.2 GHz JXP 0.45 Attenuator, 11dB, Black

99040161

1.2 GHz JXP 0.45 Attenuator, 12dB, Black

99040162

1.2 GHz JXP 0.45 Attenuator, 13dB, Black

99040163

1.2 GHz JXP 0.45 Attenuator, 14dB, Black

99040164

1.2 GHz JXP 0.45 Attenuator, 15dB, Black

99040165

1.2 GHz JXP 0.45 Attenuator, 16dB, Black

99040166

1.2 GHz JXP 0.45 Attenuator, 17dB, Black

99040167

1.2 GHz JXP 0.45 Attenuator, 18dB, Black

99040168

1.2 GHz JXP 0.45 Attenuator, 19dB, Black

99040169

1.2 GHz JXP 0.45 Attenuator, 20dB, Black

99040170
