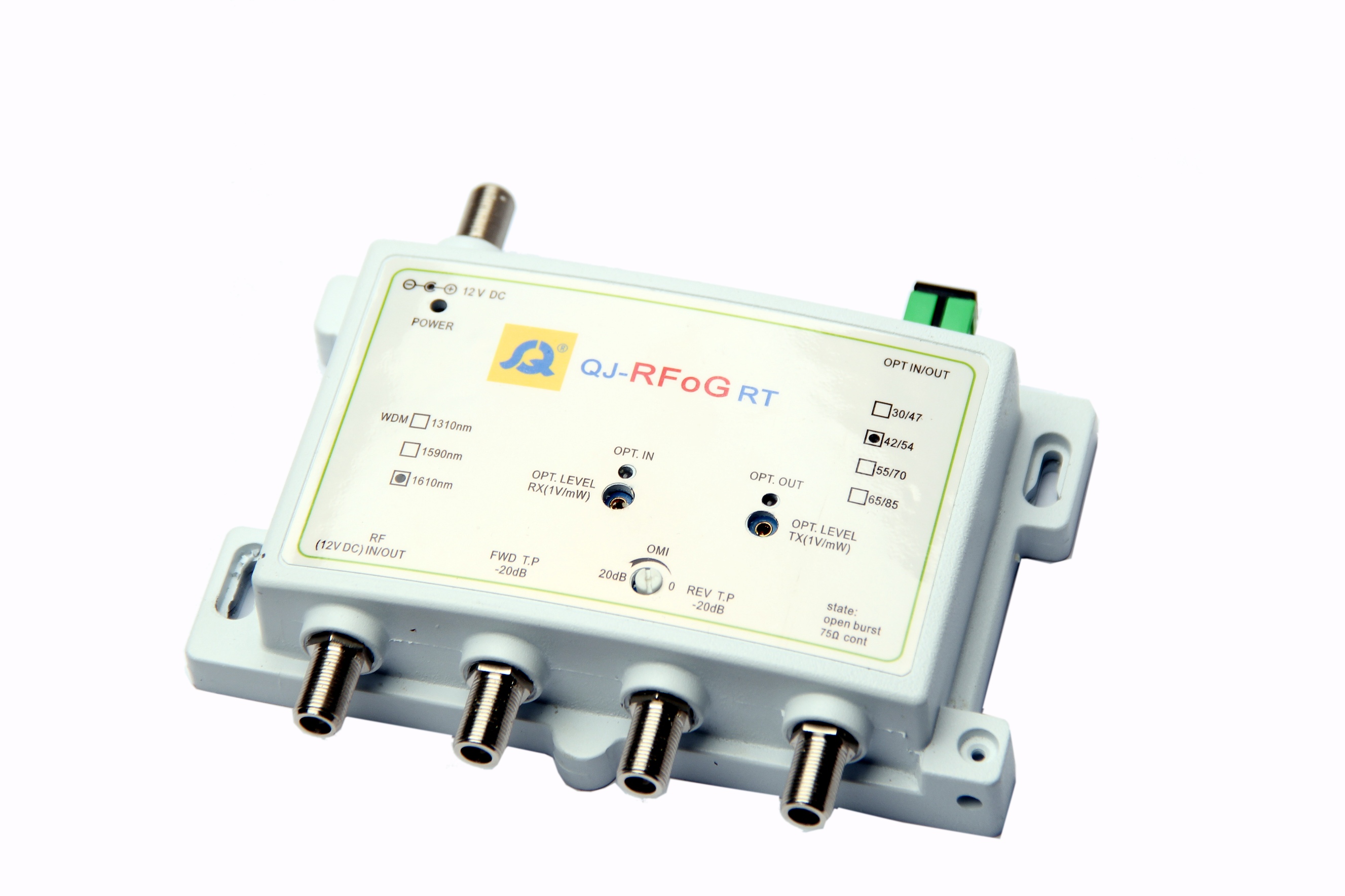

MOR-RFoG-A RFoG Node

Query


MOR-RFoG-A is a 1 GHz compact size two-way node for DOCSIS FTTH architecture. It provides excellent forward and reverse path performance combined with high reliability and a user-friendly layout. It provides excellent forward and reverse path performance combined with high reliability and a user-friendly layout. There is optical AGC function in forward path to ensure same RF output level in every home. The return transmitter adopts burst mode (turn on the laser by return signal) to greatly reduce return fibers.



Features

  l Supports 1 GHz RF pass band

  l One fiber WDM for forward and return path

  l AGC optical input range of - 10 to + 2 dBm

  l 31 dBmV RF output level

  l RF test points for forward and reverse path

  l Laser status switch point for installation easily

  l LED indicators for optical input, output and power

  l Reverse laser OMI adjustment

  l Low power consumption


Specifications

Table 1. Forward Section Specifications

Item

Units

Value

 Optical Section

 Wavelength

nm

154- 1560

 Responsivity

A/W

0.8, λ = 1550 nm

 Optical Input Power Range

dBm

- 10 - + 2

 Optical AGC Range

dBm

- 10 - + 2

 Optical AGC Time Constant

Sec.

1

 Optical Return Loss

dB

45

 Optical Connector

-

SC / APC

 RF Section





 Frequency Range

MHz

86 - 1002 (other optional)

 Frequency Response

dB

± 0.5

 RF tilt

dB

3.5

 RF Output Level

dBmV

31

(- 10 - + 2 dBm optical Input, OMI 3.5 %)

 Return Loss

dB

16

 RF Test Point

dB

20

 Link Section





 C/N*

dB

48

 Distortion*

CTB

CSO



dB

dB



60

60

RF output level is 31 dBmV (20 km fiber + passive loss, - 3 dBm optical input power, 3.5% OMI). Loaded with 59 PAL D/K CW carriers from 47-550 MHz. Digital refers to 550 MHz to 1 GHz loading with QAM carriers at -10 dB relative to analog CW carrier levels.


Table 2. Reverse Section Specifications

Item

Units

Value

 Laser Type

-

DFB

 Optical Wavelength

nm

1610 (other optional)

 Optical Output Power

dBm

3

 Optical Return Loss

dB

45

 Optical Connector

-

SC / APC

 RF Input Range

dBmV

15 - 40

 Optical Power Turn on / off Threshold

-

Accordance with the SCTE 174 Standard.

NPR Dynamic Range

dB

20

Transmitter Optical power, high

dBm

3 (RF > threshold)

Transmitter Optical Power, off

dBm

- 20 (RF < threshold)

Turn-on Time

ns

< 700

Turn-off Time

ns

< 700

 RF Frequency Range

MHz

5 - 65 (other optional)

 RF Frequency Response

dB

± 0.5

 RF Return Loss

dB

16

 RF Test Point

dB

20


Table 3. General Specifications

Item

Units

Value

 External Supply Voltage

DC

12 VDC 450mA

 RF Connectors

-

F - female, Imperial

 RF Impedance

75

 Dimensions (W x H x D)

mm

185 x 122 x 39

 Weight

kg

0.4

 Operating Temperature

°C

-10 - +50

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon               measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.



Description

Part Number

MOR - RFoG - A RFoG Node, 65/86, 1610 DFB

F12Q4G31612042
