MOR-1200-B (USB) Micro Optical Receiver

Query

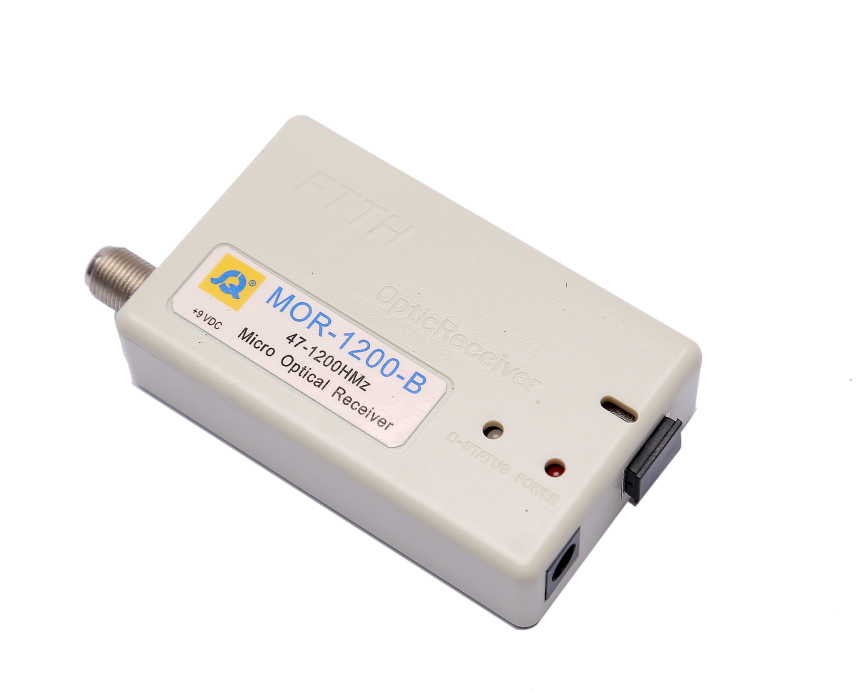

MOR-1200-B (USB) Micro Optical Receiver is a 1.2 GHz receiver specially designed for FTTH architecture. MOR-1200-B(USB) Micro Optical Receiver provides a single output in small plastic housing, compact and reasonable internal circuit structure and excellent performance. It is a best choice for residential area and home fiber optical network.



Features

  l Supports 1.2 GHz RF pass band

  l AGC built-in with -10 to -3 dBm optical input range

  l LED indicator for optical input power with 3 status

  l Mini USB power, power adapter omitted

  l Low power consumption

  l Lovely plastic small housing

  l Installation easily


Specifications

Table 1. Forward Section Specifications

Item

Units

Value

Optical Section

Wavelength

nm

1100 - 1650

Optical Input Power Range

dBm

-12 - -3

Optical AGC Range

dBm

-10 - -3

Maximum Optical Input Power

dBm

+ 3

Optical Return Loss

dB

45

Optical Connector

-

SC / APC

RF Section





Frequency Range

MHz

47 - 1200

Frequency Response

dB

± 0.75

RF Output Level1

dBmV

20

RF Output Stability @ AGC

dB

± 1.0

Return Loss

dB

16

Optical Power Indicator ( LED )

-

- Orange:  Pin < - 10 dBm

- Green:   - 10 < Pin < - 3dBm

- Red:     Pin > - 3 dBm

Link Section





Distortion @ 59 PAL D/K + Digital2

CTB

CSO



dB

dB



60

60

Notes:  1. RF output level with -10 to -3 dBm optical input power, 3.5% OMI.

              2. Distortion performance reference output level is 20 dBmV ( - 3 dBm optical input power, 3.5% OMI). Loaded with 59 PAL D/K CW carriers from 47-550 MHz. Digital refers to 550 MHz to 1 GHz loading with QAM carriers at -10 dB relative to analog CW carrier levels.



Table 2. General Specifications

Item

Units

MOR-1200-B

MOR-1200-USB

Powered By

V DC

9 VDC, 180mA

Mini USB, 150mA

RF Connectors

-

F - female, Imperial

RF Impedance

75

Dimensions (W x H x D)

mm

90 x 20 x 48

Weight

kg

0.1

Operating Temperature

°C

0 - + 40

 Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon                measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.









Description

Part Number

MOR-1200-B Micro Optical Receiver, Powered by External Power Supply

F11Q1220009002

MOR-1200-USB Micro Optical Receiver, Powered through Mini USB Connector

F11Q12200MU002
