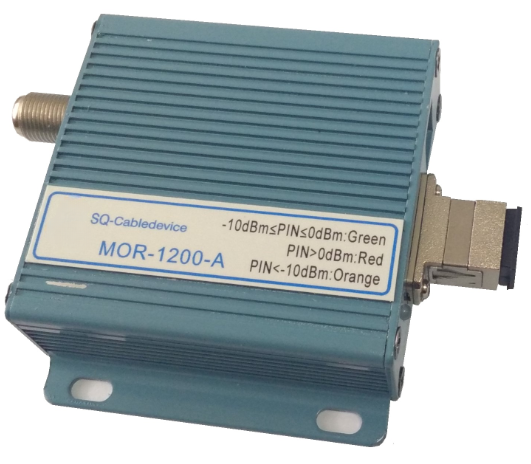

MOR-1200-A Micro Optical Receiver is a 1.2 GHz receiver specially designed for FTTH architecture. MOR-1200-A Micro Optical Receiver provides a single output in small aluminum housing, compact and reasonable internal circuit structure and excellent performance. It is a best choice for residential area and home fiber optical network.
l Supports 1.2 GHz RF pass band
l AGC built-in with -10 to 0 dBm optical input range
l LED indicator for optical input power with 3 status
l Low power consumption
l Solid aluminum small housing
l Installation easily
Table 1. Forward Section Specifications
1100 - 1650
Optical Input Power Range
-10 - 0
Optical AGC Range
-10 - 0
Maximum Optical Input Power
Optical Return Loss
SC / APC
47 - 1200
RF Output Level1
RF Output Stability @ AGC
Optical Power Indicator ( LED )
- Orange: Pin < - 10 dBm
- Green: - 10 < Pin < 0 dBm
- Red: Pin > 0 dBm
Distortion @ 59 PAL D/K + Digital2
Notes: 1. RF output level with -10 to 0 dBm optical input power, 3.5% OMI.
2. Distortion performance reference output level is 20 dBmV ( - 3 dBm optical input power, 3.5% OMI). Loaded with 59 PAL D/K CW carriers from 47-550 MHz. Digital refers to 550 MHz to 1 GHz loading with QAM carriers at -10 dB relative to analog CW carrier levels.
Table 2. General Specifications
External Power Supply, 9 Voltage
9 VDC, 180mA
F - female, Imperial
Dimensions (W x H x D)
93 x 75 x 22
0 - + 40
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
MOR-1200-A Micro Optical Receiver
