SQOB1228P 1.2GHz Optical Receiver Block

Query


The SQOB1228P is a high dynamic range optical receiver block with amplifier circuits. It has a single-mode optical input suitable for 1100 to 1650 nm wavelengths, a terminal to monitor the photo diode current and an electrical output having a characteristic impedance of 75 Ω.

The device package is complied with standard SOT-115 where the non-jacketed fiber has  an SC/APC or FC/APC connector.

The amplifier supply voltage pin and the photo diode bias voltage pin both connect to 24 V (DC).


Features

  l 28dBmV Output Level @ 0dBm Optical Input

  l 24 V DC Bias

  l Excellent Linearity

  l Extremely Low noise

  l Excellent flatness

  l Standard CATV outline

  l Rugged construction

  l Gold metallization ensures excellent reliability

  l High optical input power range



Applications

  l CATV optical node systems operating in the 45 to 1200 MHz frequency range.


Specifications:  T = +25 °C, V = 24 V, Z = 75 Ω

Parameter

Units

Min.

Typ.

Max.

Test Conditions

Optical Wavelength

nm

1100

-

1650



Frequency Range

MHz

45

-

1200



Responsivity

V/W

750

-

-

λ = 1310 nm, SC/APC or FC/APC

Optical Input Return Loss

dB

-

45

-


Equivalent Noise Input

pA/Hz

-

10

-

45 - 1200 MHz



Spectral Sensitivity

A/W

0.85

0.90

-

-

λ = 1310 ± 20 nm

λ = 1550 ± 20 nm

RF Output Level

dBmV

-

28

-

0 dBm Optical Input

Slope

dB

-

1.4



45 - 1200 MHz

Flatness

dB

-

-

±0.5

45 - 1200 MHz

Output Return Loss

dB

-

16

-

45 - 1200 MHz

Total Current Consumption (DC)

mA

-

265

280

+ 24 V

Photo Diode Bias Current (DC)

mA



20



+ 24 V

Length of Optical Fiber

mm



1000



Fiber: SM Type; 9/125 µm


Handling Procedures

Please observe the following precautions to avoid damage:



Fiberglass optical coupling

Maximum tensile strength = 5 N. Minimum bending radius = 35 mm.



Static Sensitivity

Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper ESD control techniques should be used when handling these devices.



Absolute Maximum Ratings

Parameter

Unit

Rating

Optical Input Power (Continues)

mW

5

DC Supply Over-Voltag(5 minutes)

V

30

Storage Temperature

°C

- 40 to +100

Operating Mounting Base Temperature

°C

- 30 to +85

     Caution! ESD sensitive device.                                  RoHS

Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.


Package Drawing (Dimensions in millimeters)


Pinning:

PIN

Description

1

Monitor Current

2

Common

3

Common

4

+Vof the photo diode

5

+Vof the amplifier

7

Common

8

Common

9

Output


Simplified Outline

Type

Simplified Outline

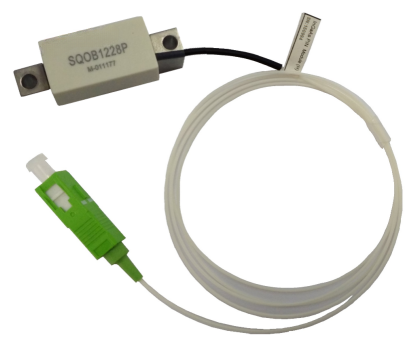

SQOB1228P with SC/APC connector

SQOB1228P with FC/APC connector



Description

Part Number

SQOB1228P Optical Receiver Block, with SC/APC Connector

SQOB1228P-M-011177-SA

SQOB1228P Optical Receiver Block, with FC/APC Connector

SQOB1228P-M-011177-FA
