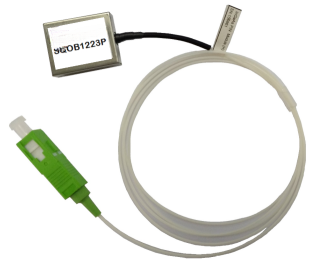

SQOB1223 1.2GHz Optical Receiver Block

Query


The SQOB1223 Optical Receiver Block is a single-mode fiber pigtailed module featuring a low-noise, impedance-matched broadband photodiode and RF amplification.

The device receives optical analog and/or digital signals for a range of video broadcast options, and delivers the corresponding RF electrical output. The wide bandwidth supports the delivery of up to 110 CATV analog channels or a combination of analog and digital channels (80/30 for example), including HDTV broadcast.

The device exhibits excellent distortion performance with values well above standards over the entire bandwidth and case temperature specifications (47 to 1218 MHz, - 30 to +85 °C).

Moreover, the proprietary impedance-match circuitry between the photodetector and RF amplification stages provides a very low noise performance value, typically less than 4.5 pA/√Hz.

The device can be used in both 1310 nm and 1550 nm applications being useful at different points of a given network.



Features

  l 47 to 1218 MHz Bandwidth Supports as Many as 110 CATV Analog Channels or a Combination of Analog and Digital Channels Including HDTV Broadcast.

  l Excellent RF Frequency and Distortion Characteristics for High Linearity.

  l Low Noise (4.5 pA/√Hz typ.) and Low Power Dissipation (0.75 W max.) as well as High RF Output.

  l Internal Proprietary Impedance Match Circuitry (75Ω)

  l Robust Small Package with Single-Mode Fiber Pigtail and Connector Options

  l Wide Operating Case Temp Range, - 30 to + 85°C



Applications

  l Video Signal Distribution in HFC and FTTx nodes





Specifications:

Table 1. Performance Highlights

Parameter

Limits

Frequency Range

47 - 1218 MHz

CTB (79ch NTSC)

-80 dBc (typ)

CSO (79ch NTSC)

-68 dBc (typ)

Optical Input Power

Up to +3 dBm

Wavelength

1260 - 1620 nm

Power Consumption

0.85 W


Table 2. Electrical/Optical Characteristics

Parameter

Unit

Min

Typ

Max

Symbol

Optical Power

dBm

--

--

+3

PIN

Optical Return Loss

dB

40

--

--

RLOPT

DC Power

+5V Amp Bias, (Pin 2)

+12V PD Bias, (Pin 6)



mA

mA



--

--



--

--



160

3



ICCA

ICCP

Wavelength

nm

1260

1310/1550

1620

λ



Responsivity

mA/mW

mA/mW

--

--

>0.85 at 1310 nm

>0.95 at 1550 nm

--

--



--

PDI Monitor Voltage

V/mA

--

0.5

--

VMON

Dissipation

W

--

--

0.85

PDISS


Table 3. RF Characteristic

Parameter

Unit

Min

Typ

Max

Symbol

Frequency Range

MHz

47

-

1218

BW

Ripple (47MHz - 1218 MHz)

dBpk - pk

-

1

1.2

-

Tilt

dB

-

1

2

-

RF Output Level 2

dBmV / ch

22

-

24

RFOUT

Output Return Loss (47 - 1218 MHz)

dB

-

-

-14

RL

Equivalent Input Noise

pA/√Hz

-

-

4.5

EIN

Discrete Second-Order 1

dBc

-

-70

-67

DSO

Discrete Third Order 1,3

dBc

-

-85

-80

DTO

Note: 1. Two laser test at 1310 nm/1550 nm. 40% OMI/tone. Total received optical power = 0 dBm. Distortion products measured at 40 and 200 MHz.

2. Optical Input = 0 dBm, OMI = 20%

3. DTO may degrade to -77 dBc above 800 MHz


Handling Procedures

Please observe the following precautions to avoid damage:



Fiberglass optical coupling

Maximum tensile strength = 5 N. Minimum bending radius = 35 mm.



Static Sensitivity

Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper ESD control techniques should be used when handling these devices.



Absolute Maximum Ratings

Parameter

Unit

Rating

Optical Input Power

mV

5 mW

DC Supply Over-Voltag(5 minutes)

V

30

Storage Temperature

°C

- 40 to +100

Operating Mounting Base Temperature

°C

- 30 to +100

    Caution! ESD sensitive device.                                RoHS

Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.


Package Drawing (Dimensions in millimeters)







Pinning:

PIN

Description

1

GND

2

+ 5

3

GND

4

RF OUT

5

GND

6

+ 12 V

7

PD MONITOR

8

GND





Description

Part Number

SQOB1223 Optical Receiver Block, with SC/APC Connector

SQOB1223-SA

SQOB1223 Optical Receiver Block, with FC/APC Connector

SQOB1223-FA
