1“ JXP Pads

Query


1.2 GHz JXP Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band. The pads are used during amplifier balancing to adjust amplifier signal levels as needed. The fixed loss produced (dB) is equal to the value printed on the top of each pad. The pads listed below are rated for operation up to 1.2 GHz. Within specific amplifier types, the pads are also used as equalizers.

These pads can be used for amplifiers, line extenders, nodes, combiners, etc.


Specifications

Item

Units

Value

Attenuation Values

dB

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Frequency

MHz

0 - 1200

Tolerance at 5 MHz

dB

± 0.2

Flatness

dB

± 0.5

Return Loss

dB

20.0

Impedance

75

 Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.


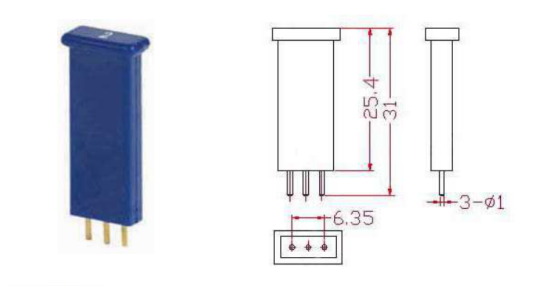

Dimensions








Description

Part Number

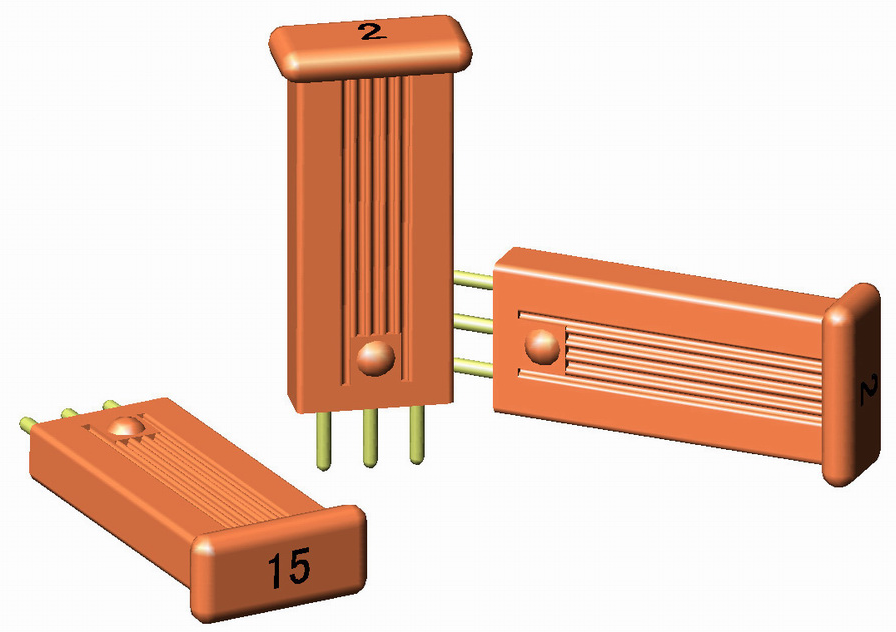

1.2 GHz JXP 1 Attenuator, 0dB, Orange with dot, Stripe

99040000

1.2 GHz JXP 1 Attenuator, 1dB, Orange with dot, Stripe

99040001

1.2 GHz JXP 1 Attenuator, 2dB, Orange with dot, Stripe

99040002

1.2 GHz JXP 1 Attenuator, 3dB, Orange with dot, Stripe

99040003

1.2 GHz JXP 1 Attenuator, 4dB, Orange with dot, Stripe

99040004

1.2 GHz JXP 1 Attenuator, 5dB, Orange with dot, Stripe

99040005

1.2 GHz JXP 1 Attenuator, 6dB, Orange with dot, Stripe

99040006

1.2 GHz JXP 1 Attenuator, 7dB, Orange with dot, Stripe

99040007

1.2 GHz JXP 1 Attenuator, 8dB, Orange with dot, Stripe

99040008

1.2 GHz JXP 1 Attenuator, 9dB, Orange with dot, Stripe

99040009

1.2 GHz JXP 1 Attenuator, 10dB, Orange with dot, Stripe

99040010

1.2 GHz JXP 1 Attenuator, 11dB, Orange with dot, Stripe

99040011

1.2 GHz JXP 1 Attenuator, 12dB, Orange with dot, Stripe

99040012

1.2 GHz JXP 1 Attenuator, 13dB, Orange with dot, Stripe

99040013

1.2 GHz JXP 1 Attenuator, 14dB, Orange with dot, Stripe

99040014

1.2 GHz JXP 1 Attenuator, 15dB, Orange with dot, Stripe

99040015

1.2 GHz JXP 1 Attenuator, 16dB, Orange with dot, Stripe

99040016

1.2 GHz JXP 1 Attenuator, 17dB, Orange with dot, Stripe

99040017

1.2 GHz JXP 1 Attenuator, 18dB, Orange with dot, Stripe

99040018

1.2 GHz JXP 1 Attenuator, 19dB, Orange with dot, Stripe

99040019

1.2 GHz JXP 1 Attenuator, 20dB, Orange with dot, Stripe

99040020
