5 - 204 MHz Low Pass Filter

Query


5 - 204 MHz Low Pass Filter has a cutoff frequency of 204 MHz. This filter isolates the forward band, together with additional filtering provided on the amplifier motherboards, such as diplexers, has enough isolation to prevent the ingress from unwanted signal. It also provides enough isolation so that there is no interference between the forward and reverse paths.

Several different lengths can be optional such as 1, 1.26, 1.37, etc.

These accessories can be used for all the nodes, amplifiers, line extenders, etc.


Specifications

Item

Units

Value

Frequency

MHz

5 - 204

Insertion Loss

dB

0.4 @ 5 - 200 MHz

dB

1.1 @ 200 - 204 MHz

Stop Band Loss

dB

27.0 @ 258 - 1218 MHz

Return Loss

dB

24

Impedance

Ω

75



Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.


Dimensions


L = 25.4mm (1 inch), or 32.0mm (1.26 inch), or 34.8mm (1.37 inch)


Description

Part Number

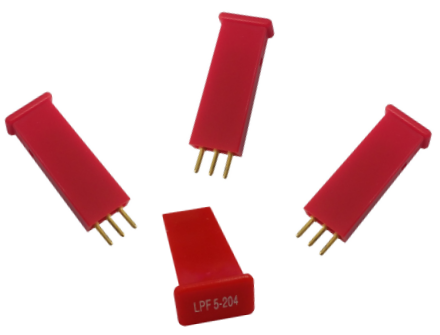

5 - 204 MHz JXP Low Pass Filter, 1 inch, Red

99040200

5 - 204 MHz JXP Low Pass Filter, 1.26 inch, Red

99040201

5 - 204 MHz JXP Low Pass Filter, 1.37 inch, Red

99040202
