1.0 GHz Variable Attenuators produce flat (even) loss across Cable TV
forward and reverse frequency band. The attenuators are used during amplifier
balancing to adjust amplifier signal levels as needed. The variable loss
produced (dB) is between 0 dB to 10 dB or 0 dB to 20 dB. The attenuators are
rated for operation up to 1.0 GHz. Within specific amplifier types, the
attenuators are also used as equalizers.
Specifications
Item | Units | Value | |
Attenuation Values | dB | 0-10 | 0-20 |
Frequency | MHz | 0 - 1000 | |
Return Loss | dB | 20.0 | |
Impedance | Ω | 75 | |
Box | - | Blue, Black | |
Cover | - | Transparence, Yellow | |
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

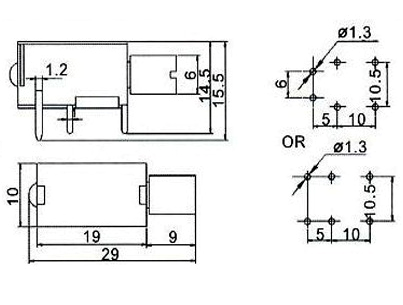

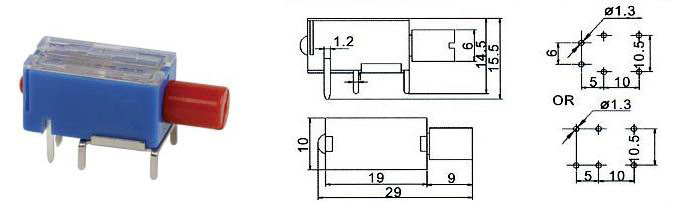

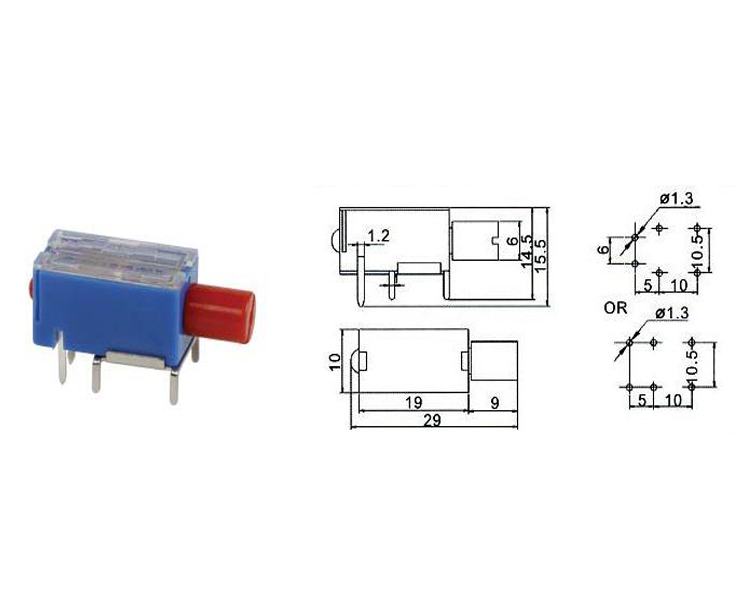

Dimensions
Shaft Size | |
Shaft diameter Ф (mm) | Shaft length L (mm) |
6 | 2, 3, 5, 8, 18, 21, 24 |
Ordering information
The Variable Attenuators are available in a wide variety of attenuator value and length. Please consult with us to determine the best choose for your application.
SJ-C-10 dB: 1000 MHz, 10 dB, blue box, red knob, 8 mm knob, transparence cover.
SJ-C-20 dB: 1000 MHz, 20 dB, blue box, red knob, 8 mm knob, transparence cover.
When you want different type you must add label.
Example:
SJ-C-10 dB (blue box, blue knob, 18 mm knob, transparence cover)
