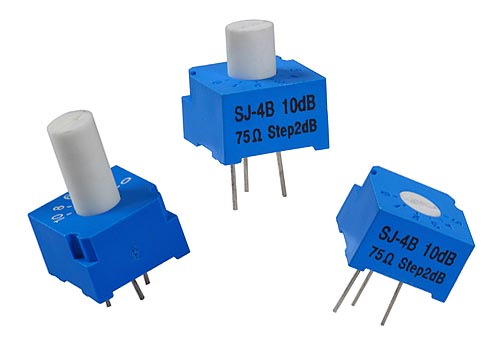

SJ-4B

Query


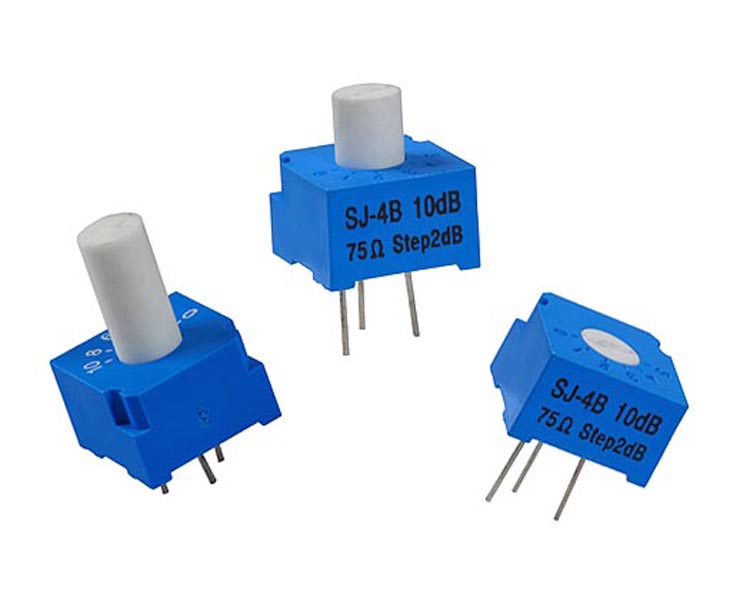

1.0 GHz SJ-4B Step Variable Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band. The attenuators are used during amplifier balancing to adjust amplifier signal levels as needed. The step variable loss produced (dB) is between 0 dB to 2.5, 5, 10, 15 dB base on the step. The attenuators are rated for operation up to 1.0 GHz. Within specific amplifier types, the attenuators are also used as equalizers.






Item

Units

Value

 Attenuation Values

dB

0 – 2.5

0 - 5

0 - 10

0 – 15

 Step Value

dB

0.5

1

2

3

 Frequency

MHz

0 - 1000

 Tolerance at 5 MHz

dB

0.2

 Flatness

dB

± 1.0

 Return Loss

dB

12.0

 Impedance

75



Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

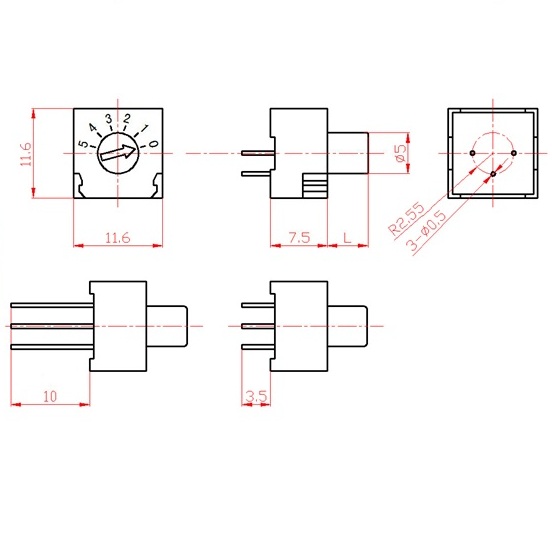

Dimensions

Shaft Size

Shaft diameter Ф( mm )

Shaft length  L ( mm )

5

0, 5, 10



SJ-4B-0.5dB Step - Value 0 - 2.5 dB

SJ-4B-1dB Step - Value 0 - 5 dB

SJ-4B-2dB Step - Value 0 - 10 dB

SJ-4B-3dB Step - Value 0 - 15 dB
