SJ-2C

Query


1.2 GHz SJ-2C Variable Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band. The attenuators are used during amplifier balancing to adjust amplifier signal levels as needed. The variable loss produced (dB) is between 0 dB to 10 dB or 0 dB to 20 dB. The attenuators are rated for operation up to 1.2 GHz. Within specific amplifier types, the attenuators are also used as equalizers.



 Item

Units

Value

 Attenuation Values

dB

0 - 10

0 - 20

 Frequency

MHz

0 - 1200

 Insertion Loss at 5 MHz

dB

1.0

 Return Loss

dB

18.0 @ 0 - 300 MHz

14.0 @ 300 - 860 MHz

12.0 @ 860 - 1200 MHz

 Impedance

75

 Knob Long

mm

2, 5, 9, 18

 Knob Color

-

Red, Blue

 Box

-

Blue, Black

 Cover

-

Transparence, Yellow

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

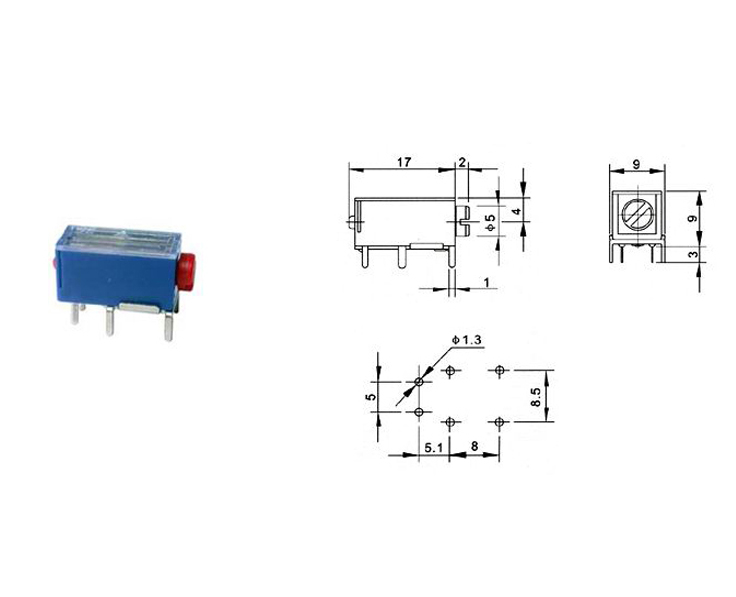

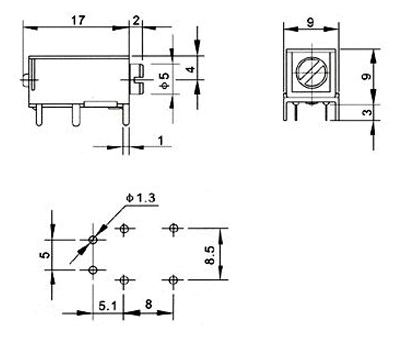

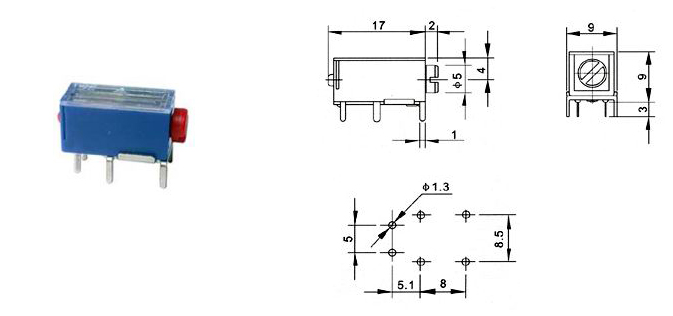

轴端尺寸

轴径 Ф( mm )

轴长  L ( mm )

5

2, 6.5, 9, 10.5

6

5




SJ-2C-10dB:1200MHz,10dB,blue box,red knob,9mm knob, transparence cover.

SJ-2C-20dB:1200MHz,20dB,blue box,red knob,9mm knob, transparence cover.

When you want different type you must add label.

Example:

SJ-2C-10dB(blue box,blue knob,5mm knob,transparence cover):

1200MHz,10dB,blue box,blue knob,5mm knob,transparence cover
