1.2 GHz Variable Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band. The attenuators are used during amplifier balancing to adjust amplifier signal levels as needed. The variable loss produced (dB) is between 0 dB to 10 dB or 0 dB to 20 dB. The attenuators are rated for operation up to 1.2 GHz. Within specific amplifier types, the attenuators are also used as equalizers.





技术指标

Item

Units

Value

Attenuation Values

dB

0-10

0-20

Frequency

MHz

0 - 1200

Insertion Loss at 5 MHz

dB

1.0

Return Loss

dB

21.0 @ 0 - 204 MHz

15.0 @ 205 - 750 MHz

12.0 @ 751 - 860 MHz

11.0 @ 861 - 1200 MHz

Impedance

75

Knob Clock



Red, Blue

Box



Blue, Black

Cover



Transparence, Yellow

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

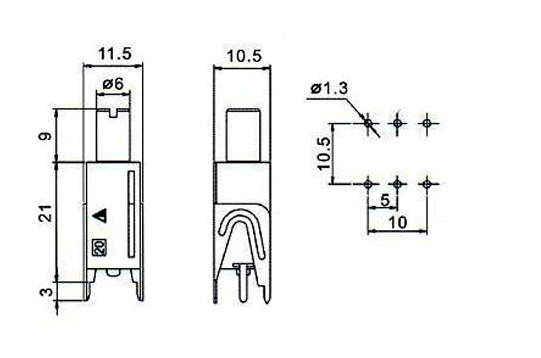

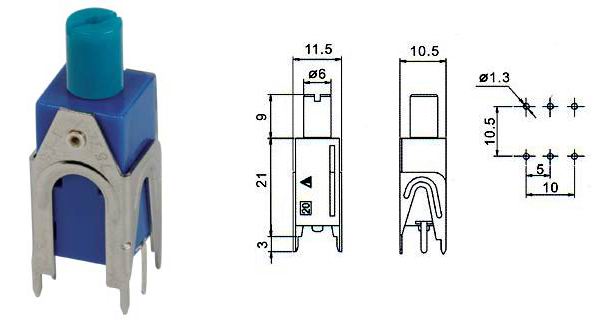

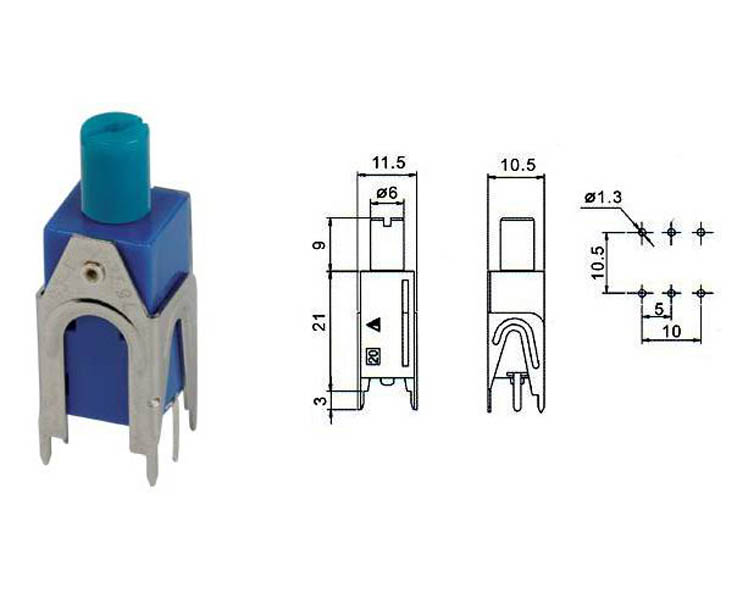

Dimensions




Shaft Size

Shaft diameter Ф (mm)

Shaft length L (mm)

6

5, 8




Ordering information

The Variable Attenuators are available in a wide variety of attenuator value and length. Please consult with us to determine the best choose for your application.


SJ-1B-10 dB: 1200 MHz, 10 dB, blue box, red knob, 8 mm knob, transparence cover.

SJ-1B-20 dB: 1200 MHz, 20 dB, blue box, red knob, 8 mm knob, transparence cover.

When you want different type you must add label.

Example:

SJ-1B-10 dB: 1200 MHz, 10 dB, blue box, blue knob, 5 mm knob, transparence cover
