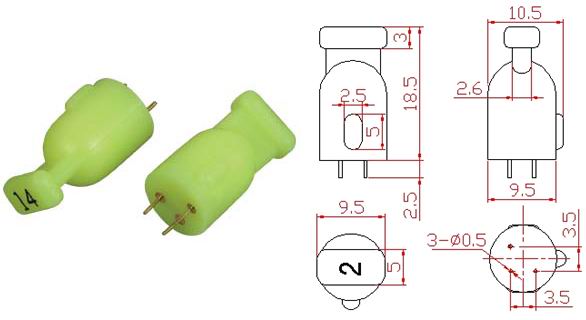

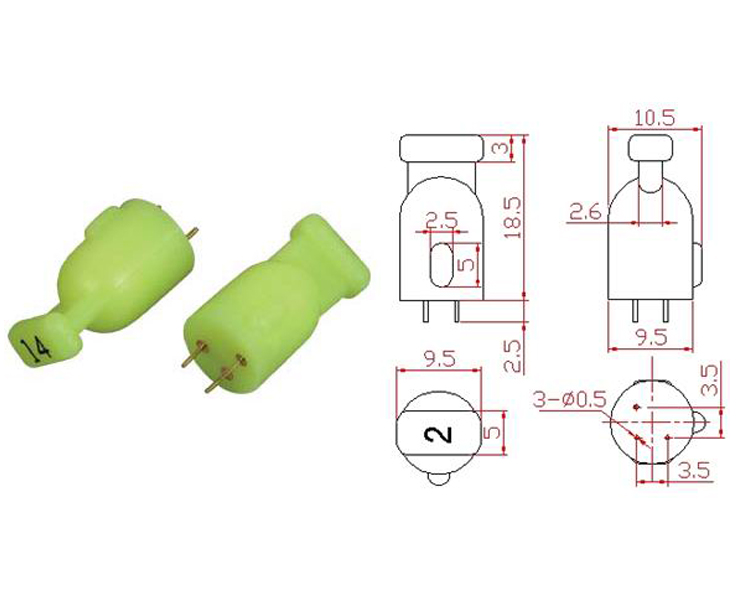

1.2 GHz SXP Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band. The pads are used during amplifier balancing to adjust amplifier signal levels as needed. The fixed loss produced (dB) is equal to the value printed on the top of each pad. The pads listed below are rated for operation up to 1.2 GHz. Within specific amplifier types, the pads are also used as equalizers.

These pads can be used for amplifiers, line extenders, nodes, combiners, etc.

Item	Units	Value
Attenuation Values	dB	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
Frequency	MHz	0 - 1200
Tolerance at 5 MHz	dB	± 0.2
Flatness	dB	± 0.5
Return Loss	dB	20.0
Impedance	Ω	75

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

Ordering information

Description	Part Number
1.2 GHz SXP Attenuator, 0dB	SXP-0
1.2 GHz SXP Attenuator, 1dB	SXP-1
1.2 GHz SXP Attenuator, 2dB	SXP-2
1.2 GHz SXP Attenuator, 3dB	SXP-3
......	……
1.2 GHz SXP Attenuator, 19dB	SXP-19
1.2 GHz SXP Attenuator, 20dB	SXP-20

SXP Attenuator
