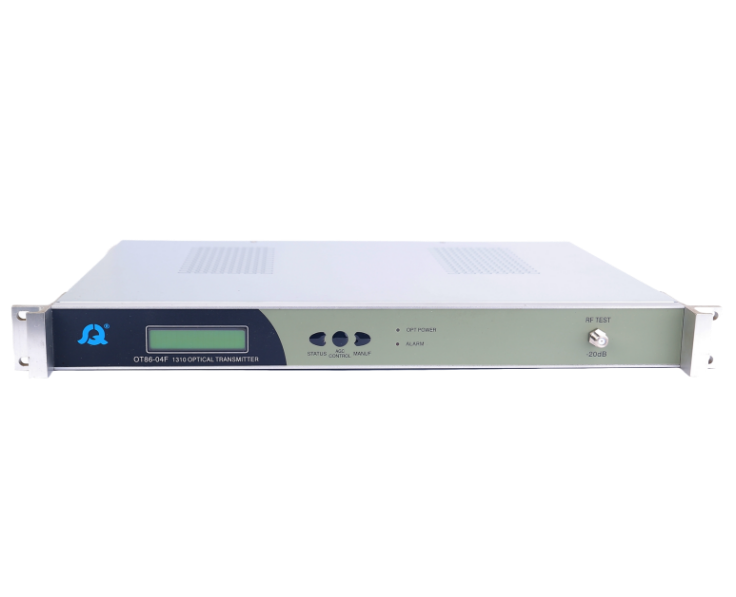

Features:
u
High-performance DFB laser to increase the signal quality
in HFC .
u
Use MCU to monitor operation state and temperature.
u
Display operation statement with LCD.
u
Two modules are plug in one 19” 1u housing.
u
Effective switch power suits for all occasion.
LENGTH of OPTICAL
WAVE |
1310±30nm |
||||||
OPTICAL OUTPUT POWER |
4 mW(6dBm) |
||||||
FREQUENCY RESPONSE |
47~860MHz |
||||||
RF INPUT LEVEL |
15~30dBmV |
||||||
RETURNLOSS (Impedance 75 ohm) |
≥15dB |
||||||
FLATNESS |
±0.75dB |
||||||
CTB(59 Pal-D channel loading,input optical
power of Rx is -1dBm) |
≥65dB |
||||||
CSO(Test condition is as CTB) |
≥60dB |
||||||
LINK LOSS (dB) |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
CNR(Test condition is as CTB) |
53.8 |
52.8 |
51.8 |
51.0 |
50.1 |
49.2 |
48.2 |
INPUT VOLTAGE |
160V~242V /AC 47~63Hz |
||||||
POWER SUPPLY |
≤40W |
||||||
OPERATING TEMPERATURE |
0℃~30℃ |
||||||
DIMENSIONS(L×H×W) |
19’’X1.75’’X18’’ |
||||||
WEIGHT |
3Kg |
